The quest for a sustainable, clean, and abundant energy source is one of the defining challenges of our era. As reliance on finite fossil fuels becomes increasingly untenable due to resource depletion and environmental degradation, the global focus has intensified on renewable alternatives. Among these, solar energy stands paramount, offering a vast, widely distributed, and fundamentally green solution. Within the solar photovoltaic (PV) domain, the evolution has moved beyond first-generation crystalline silicon cells towards more efficient, cost-effective, and versatile thin-film technologies. From this perspective, Cu(In,Ga)Se2 (CIGS) thin-film solar cells have emerged as a leading contender, potentially representing the next major evolution in our collective solar system infrastructure. This article will detail the current state of CIGS thin-film PV, examining its unique properties, global industrial progress, persistent challenges, and the critical research pathways that will determine its future role in the global energy solar system.
1. The Photovoltaic Spectrum: A Comparative Framework

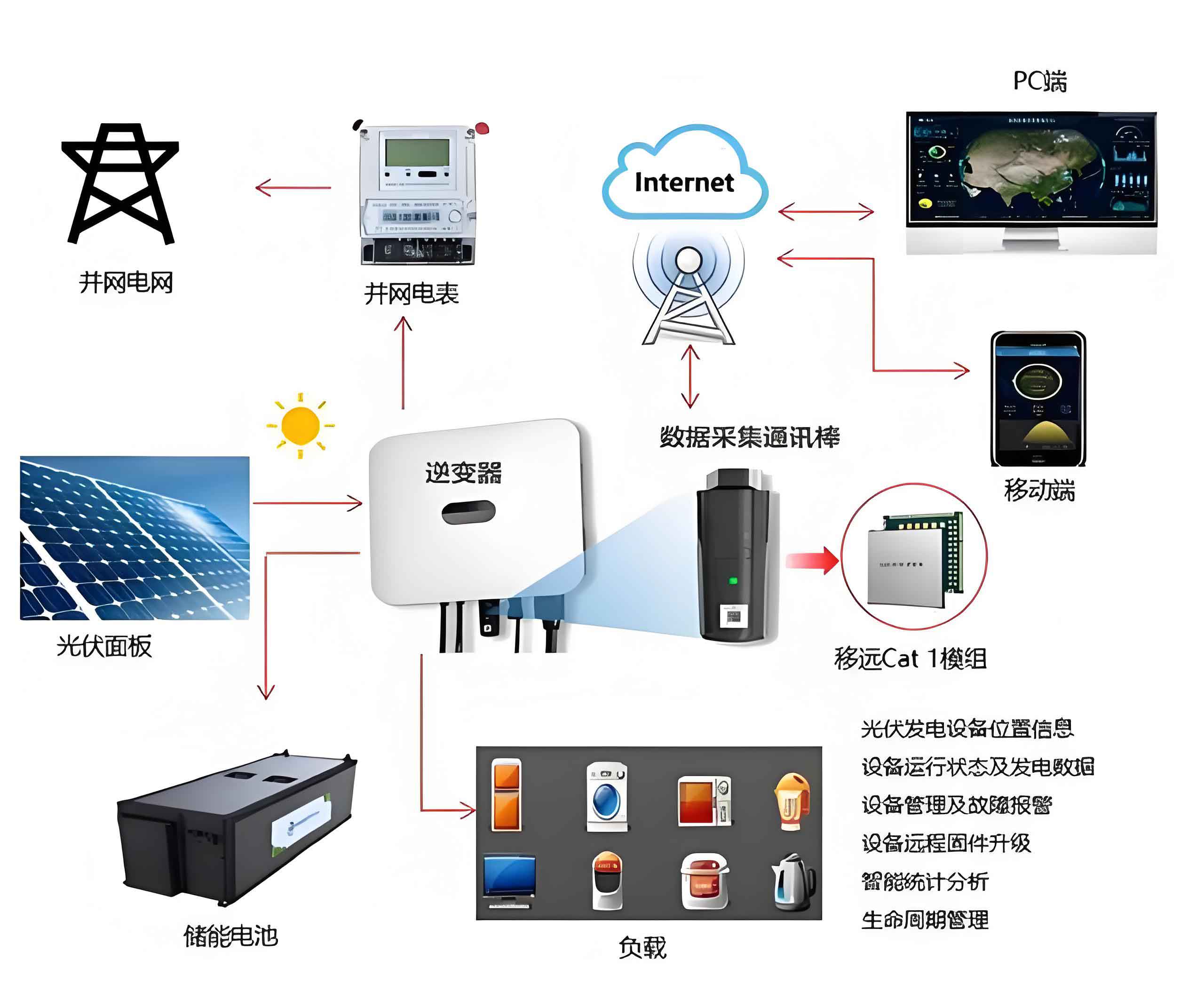

To appreciate the position of CIGS, one must first understand the broader photovoltaic solar system. Solar cells are broadly categorized by their active materials and deposition techniques.
| Cell Type | Sub-category | Key Characteristics | Lab Efficiency (%) | Commercial Module Efficiency (%) | Primary Challenges |
|---|---|---|---|---|---|
| Crystalline Silicon (c-Si) | Mono-crystalline (mono-Si) | High efficiency, mature technology, stable. | ~26.7 | 19-22 | High material/energy cost, brittle, indirect bandgap. |
| Multi-crystalline (multi-Si) | Lower cost than mono-Si, established production. | ~24.4 | 17-19 | Lower efficiency than mono-Si, crystal defects. | |
| Thin-Film | Amorphous Silicon (a-Si) | Low-temperature process, lightweight. | ~14.0 | 6-9 | Light-induced degradation (Staebler-Wronski effect). |
| Cadmium Telluride (CdTe) | Low-cost manufacturing, good spectral match. | ~22.1 | 18-20 | Toxicity of Cd, scarcity of Te. | |
| Copper Indium Gallium Selenide (CIGS) | High efficiency, flexible, tunable bandgap, stable. | ~23.6 | 14-19 | Complex stoichiometry control, In/Ga scarcity. | |
| Gallium Arsenide (GaAs) | Very high efficiency, radiation-hard. | ~29.1 (single junction) | 24-28 (space apps) | Extremely high material and production cost. | |
| Emerging | Perovskite Solar Cells | Rapid efficiency rise, low-cost solution process. | ~26.1 | ~18 (small modules) | Long-term stability, lead toxicity, scaling. |
| Dye-Sensitized & Organic | Low-light performance, aesthetic flexibility. | ~13-15 | < 10 | Low efficiency and long-term stability. |
While crystalline silicon commands over 90% of the current market, its limitations are clear: energy-intensive purification, high material usage, and rigidity. This creates a significant opportunity for thin-film technologies within the distributed solar system. CdTe has achieved notable commercial success, but its reliance on toxic and scarce elements presents sustainability concerns. CIGS, however, offers a compelling combination of high theoretical efficiency, demonstrated stability, and material flexibility, making it a prime candidate for integration into diverse solar system architectures, from building-integrated PV (BIPV) to portable power.
2. The Distinctive Advantage Profile of CIGS for Advanced Solar Systems
CIGS thin-film solar cells are not merely an alternative but represent a qualitative leap in solar system component design. Their advantages stem from fundamental material properties.
2.1 Exceptional Optical Absorption
As a direct bandgap semiconductor, CIGS possesses an extraordinarily high absorption coefficient (α), typically on the order of 105 cm-1 for photons with energy above its bandgap. This allows for near-complete absorption of the relevant solar spectrum within an extremely thin layer. The relationship between absorption and thickness is governed by the Beer-Lambert law:
$$I(x) = I_0 e^{-\alpha x}$$
where \(I(x)\) is the light intensity at depth \(x\), and \(I_0\) is the incident intensity. The high \(\alpha\) value means that a thickness \(x\) of 1-2 µm is sufficient, drastically reducing material consumption compared to the >150 µm needed for silicon. This material efficiency is a key economic and resource-sustainability driver for large-scale solar system deployment.
2.2 Tunable Bandgap for Spectral Matching
The bandgap (\(E_g\)) of CIGS is not fixed; it can be precisely engineered by adjusting the Gallium to Indium ratio ([Ga]/([Ga]+[In])). This allows for optimization of the solar cell to the solar spectrum. The bandgap energy varies approximately according to:
$$E_g^{CIGS}(x) \approx E_g^{CIS} (1-x) + E_g^{CGS} (x) – bx(1-x)$$
where \(x = [Ga]/([Ga]+[In])\), \(E_g^{CIS} \approx 1.04\) eV (for CuInSe2), \(E_g^{CGS} \approx 1.68\) eV (for CuGaSe2), and \(b\) is a bowing parameter. This tunability from ~1.0 eV to ~1.7 eV enables the creation of an absorber layer with a “graded” bandgap. A double-graded or V-shaped profile (wider bandgap at the front and back, narrower in the middle) creates a built-in electric field that enhances carrier collection and reduces recombination at the back contact, boosting the voltage (\(V_{oc}\)) and fill factor (FF) of the solar system module.
2.3 Outstanding Performance Metrics and Stability
The progress in CIGS efficiency is a testament to its potential. Lab-scale cells on glass have surpassed 23.6%, and flexible versions on polymer substrates have reached over 20%. More critically for the solar system operator, CIGS modules exhibit exceptional long-term stability with minimal degradation, unlike some other thin-film technologies. Their performance under real-world conditions is enhanced by two key attributes:
- Excellent Low-Light/Weak-Light Response: CIGS cells maintain relatively high conversion efficiency under diffuse light or partial shading, leading to higher daily and seasonal energy yields in non-ideal climates—a significant advantage for a rooftop solar system.
- Radiation Hardness: CIGS displays a degree of self-healing from radiation-induced defects due to the mobility of Cu ions, making it robust for space-based solar system applications.
2.4 Flexibility and Lightweight Nature
By depositing the CIGS stack onto flexible substrates like stainless steel, titanium, or polyimide foil, one can produce lightweight, unbreakable, and conformable solar modules. This opens revolutionary applications beyond rigid panels: integrated into vehicle roofs, backpacks, tents, and curved building surfaces. The adaptability of such flexible CIGS solar systems greatly expands the addressable market.
The core performance parameters of a solar cell are summarized by the conversion efficiency (\(\eta\)), defined as:
$$\eta = \frac{P_{max}}{P_{in}} = \frac{V_{oc} \times J_{sc} \times FF}{P_{in}}$$
where \(P_{max}\) is the maximum power output, \(P_{in}\) is the incident solar power density (usually 1000 W/m² under AM1.5 spectrum), \(V_{oc}\) is the open-circuit voltage, \(J_{sc}\) is the short-circuit current density, and \(FF\) is the fill factor. CIGS excels in achieving a high \(J_{sc}\) (due to high absorption) and a good \(V_{oc}\) (due to bandgap tunability and grading), leading to its high \(\eta\).
| Property | Value/Range for CIGS | Impact on Solar System |
|---|---|---|
| Absorption Coefficient (α) | ~105 cm-1 | Enables ultra-thin (<2 µm), material-efficient absorbers. |
| Tunable Bandgap (Eg) | 1.0 – 1.7 eV | Allows spectral matching and bandgap grading for higher voltage and efficiency. |
| Lab Cell Efficiency (η) | ~23.6% (glass), ~20.4% (flexible) | Demonstrates high theoretical performance potential. |
| Theoretical Efficiency Limit (Single Junction) | ~33% (Shockley-Queisser Limit at ~1.4 eV) | CIGS bandgap is near the ideal for single-junction cells. |
| Temperature Coefficient | ~ -0.36 %/°C (better than c-Si’s ~ -0.45 %/°C) | Lower power loss in hot climates, improving annual yield of a solar system. |
| Estimated Energy Payback Time (EPBT) | ~1-1.5 years | Fast energy return, enhancing the sustainability profile of the solar system. |
3. Global Industrialization Status: From Lab to Solar System Deployment
The transition of CIGS from laboratory champion cells to commercially viable solar system products has been a journey of scaling and process optimization. Several technical routes have been pursued, each with trade-offs between efficiency, uniformity, cost, and scalability.
3.1 Predominant Fabrication Techniques
- Co-Evaporation: The simultaneous thermal evaporation of Cu, In, Ga, and Se onto a heated substrate. This vacuum-based process offers excellent control over film composition and bandgap grading in-situ, leading to record efficiencies. However, it poses significant challenges in scaling up for uniform deposition over large areas (>1 m2).
- Sputtering & Selenization/Sulfurization: A two-stage process. First, a precursor stack of metallic Cu, In, and Ga layers is deposited via magnetron sputtering (a highly scalable and uniform technique). Second, the stack is reacted in a Se (and sometimes S) containing atmosphere (H2Se, Se vapor, or Se + H2S) to form the CIGS compound. This method is favored for industrial manufacturing due to its compatibility with large-area deposition and existing flat-panel display infrastructure.
- Non-Vacuum/Printing Techniques: These include nanoparticle inks, molecular precursor solutions, and electrochemical deposition. They aim to drastically reduce capital costs by avoiding expensive vacuum equipment. While efficiencies are catching up (~15-17% for lab cells), challenges remain in controlling film morphology, purity, and reproducibility at the solar system module scale.
3.2 The International Industrial Landscape
The global effort to commercialize CIGS has seen varying degrees of success, with several companies establishing pilot or mass production lines.
| Region/Company (Representative) | Primary Technology | Status & Notable Achievement | Implication for Solar System Supply |
|---|---|---|---|
| Europe (Formerly Solarion, ZSW spin-offs) | Co-Evaporation (flexible) | Pioneered high-efficiency flexible CIGS on polymer foil. Several companies in pilot phase. | Focus on niche, high-value applications for lightweight, integrated solar systems. |
| Japan (Solar Frontier – now part of Idemitsu) | Sputtering & Selenization | Achieved the largest historical production capacity (~1 GW). Module efficiencies ~14-15%. | Demonstrated large-scale manufacturability for utility and commercial solar system projects. |
| United States (Siva Power, formerly MiaSolé) | Roll-to-Roll Sputtering on Flexible Substrate | Developed high-speed deposition on flexible stainless steel, with champion module efficiency over 17%. | Potential for very low-cost, high-throughput manufacturing of flexible solar system products. |
| China (Various: AVIC, Shandong, etc.) | Mainly Sputtering & Selenization | Rapid capacity expansion, strong government and corporate backing. Efficiencies ~14-16% for commercial modules. | Positioning to become a major volume producer, potentially lowering costs for global solar system deployment. |
| Global R&D (Empa, NREL, ZSW, etc.) | Various advanced methods | Continuously pushing record cell efficiencies, developing novel structures (e.g., tandem cells with Perovskites). | Feeding the innovation pipeline for the next generation of high-performance solar system components. |
The central challenge across the industry has been the “efficiency gap” between small-area champion cells and large-area production modules. Bridging this gap requires exquisite control over composition, morphology, and interface quality across square-meter areas—a formidable materials engineering challenge that directly impacts the cost-per-watt of the final solar system installation.
4. Critical Challenges and Future Research Vectors
For CIGS to claim a more dominant position in the global PV solar system, several intertwined challenges must be addressed through concerted research and development.
4.1 Material Scarcity and Cost
Indium and Gallium are by-products of zinc and aluminum mining, respectively. Their supply is linked to the production volumes of these primary metals. While the thinness of CIGS layers minimizes mass usage, a terawatt-scale solar system rollout would significantly increase demand. Research focuses on:
– **Reducing In/Ga thickness** further via advanced light-trapping schemes.
– **Exploring In-free alternatives** like CZTS (Cu2ZnSnS4) or CZGTS (with Ge), though their efficiencies lag significantly.
– **Improving material utilization rates** in deposition chambers and enhancing recycling processes for production scrap and end-of-life modules.
4.2 Process Complexity and Scaling
Achieving the perfect Cu-poor stoichiometry (Cu/(In+Ga) ≈ 0.8-0.9) and the desired Ga grading profile uniformly over large areas is non-trivial. The selenization/sulfurization step involves complex gas-solid reactions and phase transformations. Future work involves:
– **Advanced in-situ monitoring and real-time process control** using techniques like spectroscopic ellipsometry or X-ray fluorescence.
– **Development of more robust and forgiving absorber formation processes.**
– **Innovation in non-vacuum, atmospheric pressure printing** to reduce capex and energy consumption of the manufacturing solar system itself.
4.3 Tandem Cell Integration for Ultra-High Efficiency
The ultimate efficiency of a single-junction solar cell is limited by the Shockley-Queisser limit (~33% for a 1.34 eV bandgap). A promising path beyond this for CIGS is its integration into tandem solar systems. Here, a wide-bandgap top cell (e.g., Perovskite) captures high-energy photons, while a lower-bandgap CIGS bottom cell captures lower-energy photons. The theoretical efficiency for such a two-terminal tandem exceeds 40%. The current research formula for the optimal bandgap combination is given by detailed balance calculations, but a key target is a ~1.7 eV top cell with a ~1.1 eV CIGS bottom cell. The challenges are in developing transparent interlayers, current matching, and stabilizing the perovskite component.
4.4 Buffer and Interface Engineering
The classic CIGS cell structure uses a toxic CdS buffer layer deposited via chemical bath deposition (CBD). Research is actively pursuing Cd-free, more eco-friendly alternatives like (Zn,Mg)O, Zn(O,S,OH), or In2S3 deposited by scalable methods like atomic layer deposition (ALD) or sputtering. Optimizing these interfaces is crucial for minimizing recombination losses and maintaining high \(V_{oc}\) and \(FF\) in the commercial solar system module.
5. Conclusion
CIGS thin-film photovoltaics stand at a critical juncture. They have unequivocally proven their scientific merit through record-breaking efficiencies and unique property sets ideal for a diversified, robust, and high-yield solar system. The material’s high absorption, bandgap tunability, stability, and flexibility offer solutions to many limitations inherent in the dominant silicon-based solar system paradigm. The industrial landscape has demonstrated that gigawatt-scale manufacturing is feasible, with several companies navigating the difficult path from pilot to volume production.
However, the journey to widespread solar system adoption is not complete. The “efficiency-volume-cost” triangle remains the central challenge. Overcoming it requires sustained innovation in reducing material intensity, simplifying and controlling complex deposition processes, and relentlessly closing the gap between lab cell and production module performance. The integration of CIGS into tandem architectures presents perhaps the most exciting frontier, offering a pathway to efficiencies that could redefine the performance standards of terrestrial solar systems.
In conclusion, while crystalline silicon will remain the workhorse of the solar system for the immediate future, CIGS thin-film technology holds the distinct promise of being a complementary, and in some applications, superior solution. Its success will depend not just on incremental engineering improvements, but on the continued holistic integration of materials science, process innovation, and scalable manufacturing engineering. If these challenges are met, CIGS is poised to become a cornerstone of the next-generation, high-performance, and versatile global solar system infrastructure.
