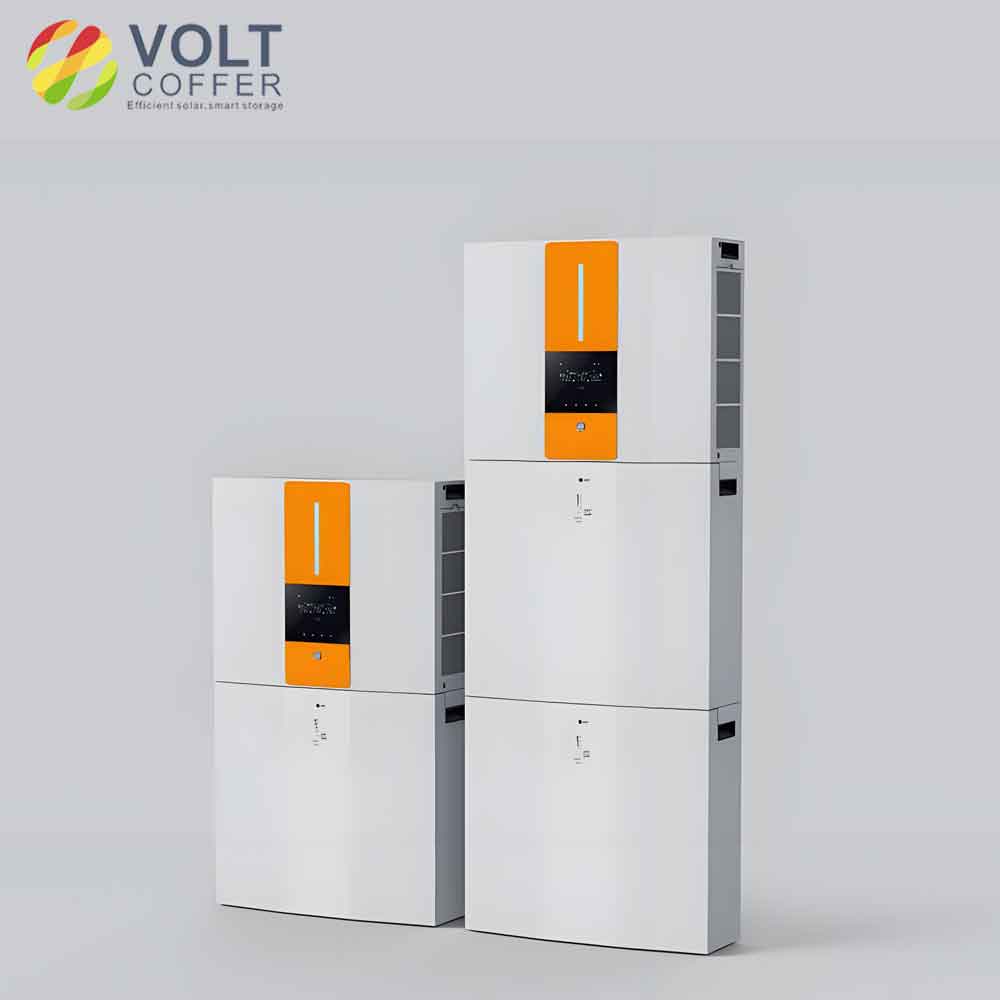

All in One Solar Inverter Battery

  • Multi-function inverter/charger/solar system.
  • Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
  • LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
  • Compatible to mains voltage or generator power, auto restart while AC is recovering.
  • Users can flexibly match battery capacity, standard battery packages or external batteries.
  • It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.

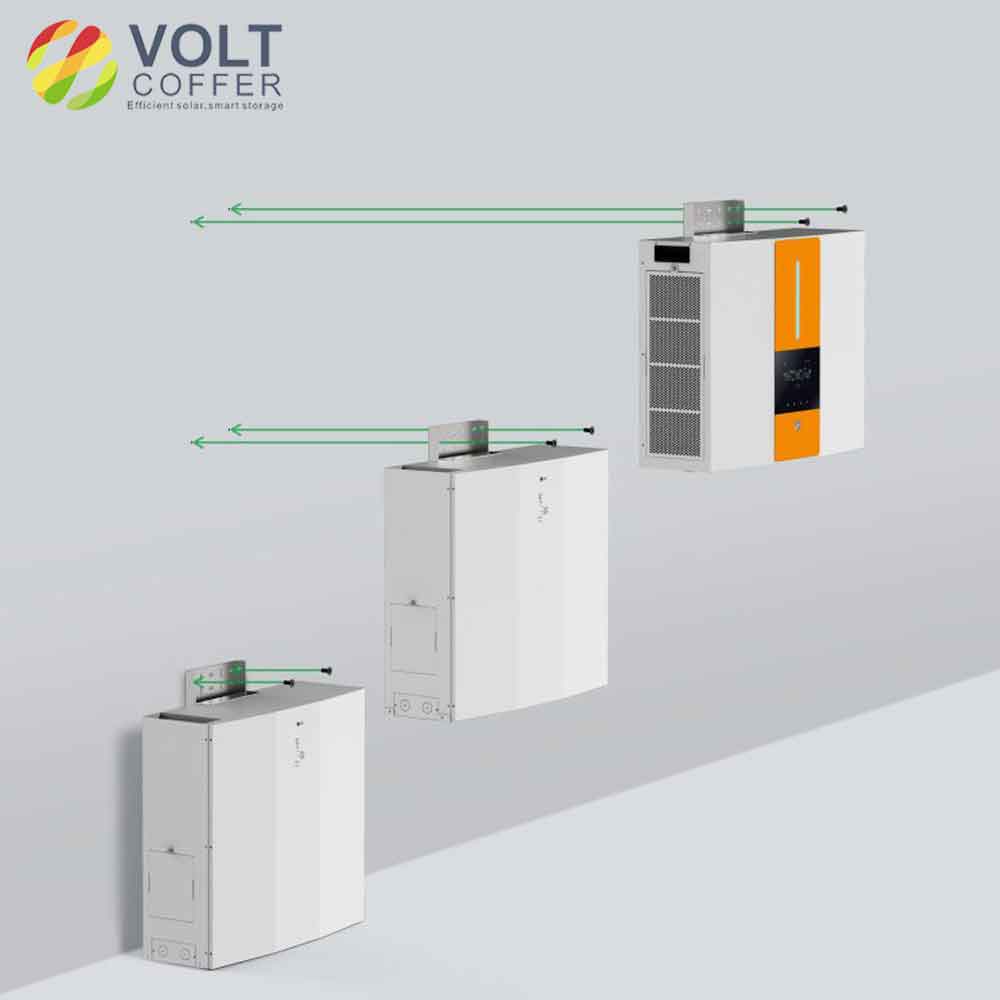

  • Integrated design, Easy transportion and installation.
  • Overload/Over temperature/short circuit protection.
  • Our product are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.
All In One Energy Storage Lifepo4 Battery 10Kwh 20Kwh 30Kwh 40KWh Home Storage Solar Power System Battery for Home
  1. Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and powerful power was developed.
  2. energy storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is reduced.
  3. Fully retain the use of load power.
  4. The battery cell uses the best safety
  5. LiFePO4 battery to save costs.

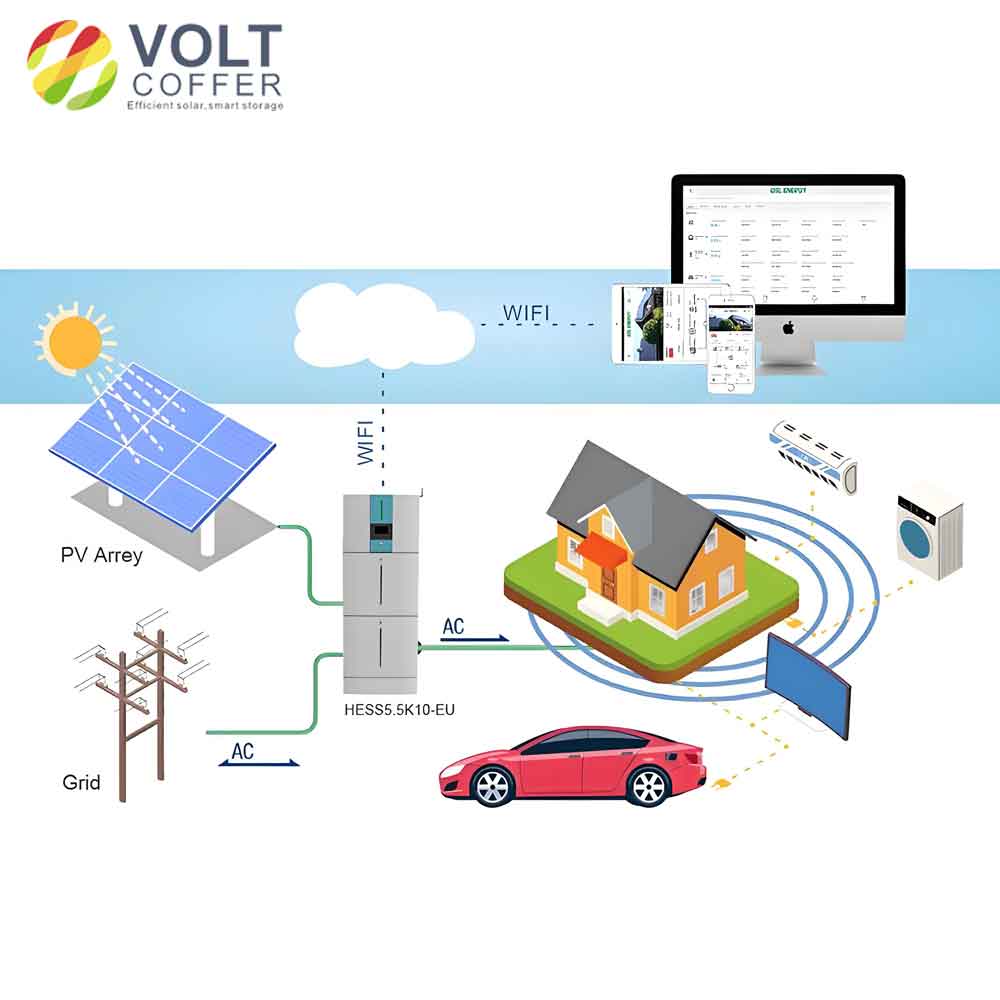

This energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.

Technology parameter sheet
Model VoltCoffer-SS6K10-EU Vo;tCoffer-SS6K20-EU
INVERTER
Maximum PV Input Power 6500 W
Rated Output Power 6000W
Maximum Charging Power 6000W
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-Up Voltage / Initial Feeding Voltage 116 VDC / 150 VDC
MPP Voltage Range 120 VDC – 450 VDC
Number of MPP Trackers / Maximum Input Current 2 / 2 * 13 A
GRID OUTPUT (AC)
Nominal Output Voltage 208 / 220 / 230 / 240 VAC
Output Voltage Range 184 – 264.5 VAC*
Maximum Output Current 23.9 A*
Maximum Conversion Efficiency (DC / AC) 96%
European Efficiency @ Vnominal 95%
AC INPUT
AC Start-Up Voltage / Auto Restart Voltage 120 – 140 VAC / 180 VAC
Acceptable Input Voltage Range 170 – 280 VAC
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 208 / 220 / 230 / 240 VAC
Efficiency (DC to AC) 93%
BATTERY TECHNICAL SPECIFICATIONS
Nominal DC Voltage 51.2 VDC
Battery Capacity 200Ah 400Ah
Maximum Charging Current 100A

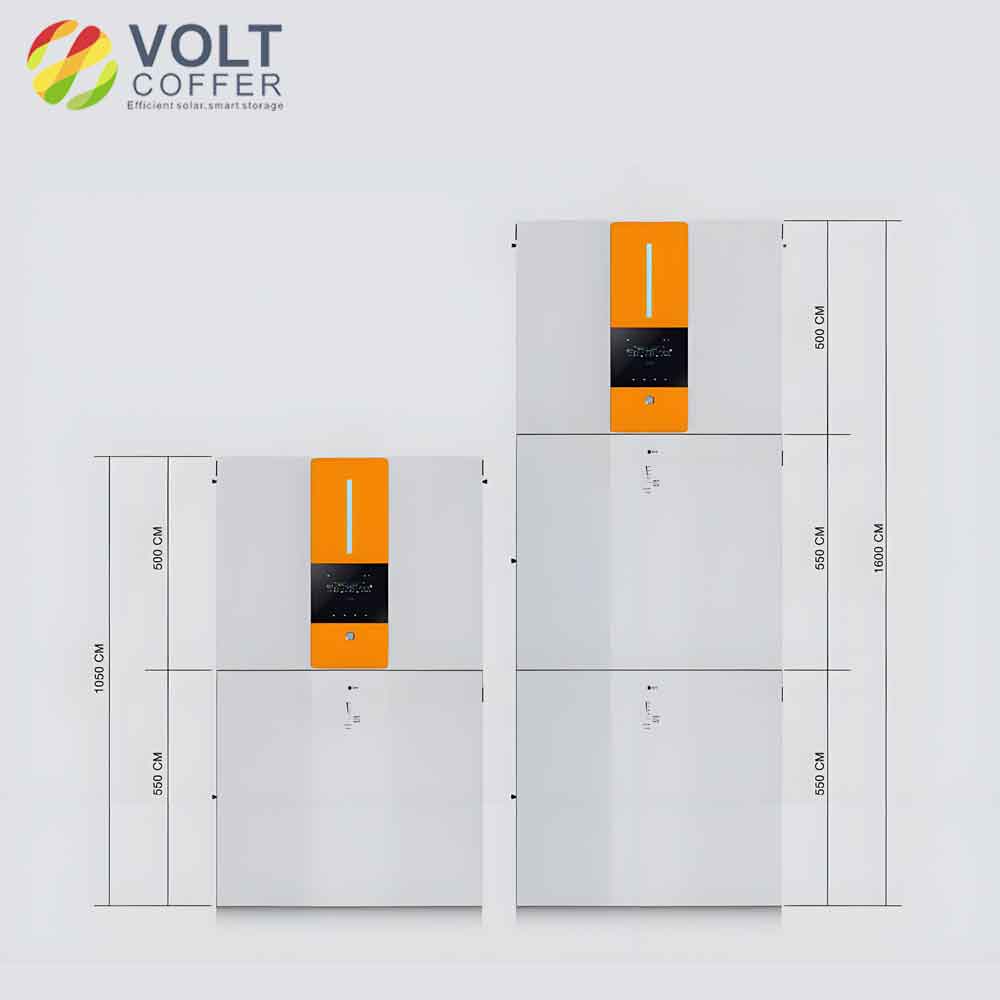

Dimension, D x W x H (mm) 621 x 214 x 1200 621 x 214 x 1750
Net Weight (kg) 85 165
Energy 10.24KWH 20.48KWH
Nominal Voltage 51.2 VDC
Full Charge Voltage (FC) 56V
Full Discharge Voltage (FD) 45V
Maximum Continuous Discharging Current 120A
Maximum Discharging Current 120 A at 1 min
Protection BMS, Breaker
Charge Voltage 56V
Charge Current 20 A (0.2 C)
Maximum Charge Current 100 A (0.5 C)
Standard Charge Method 0.2 C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to < 0.05 C
Inner Resistance < 20 m Ohm
