Abstract:
This comprehensive review delves into the current state of energy storage, emphasizing the technical merits and challenges associated with zinc iron flow batteries (ZIFBs). We undertake an in-depth analysis of the advantages offered by zinc iron flow batteries in the realm of energy storage, complemented by a forward-looking perspective. Given their low cost, exceptional performance, and wide availability of raw materials, zinc iron flow battery promise to revolutionize large-scale energy storage applications, significantly enhancing energy usage efficiency.
Introduction
The global energy landscape is undergoing a transformative shift, driven by the urgent need to transition from fossil fuels to renewable energy sources. Wind and solar power, although abundant and environmentally friendly, are inherently intermittent, posing challenges for grid stability and reliability. Large-scale energy storage technologies have emerged as critical enablers for integrating renewable energy sources into the electric grid. Among these, zinc iron flow batteries (ZIFBs) have garnered significant attention due to their unique combination of advantages.
This article explores the fundamental principles of zinc iron flow battery, their technical characteristics, current applications across various sectors, and future prospects. By incorporating numerous tables and figures, we aim to provide a comprehensive understanding of this emerging energy storage technology.
Fundamentals of Zinc Iron Flow Batteries
Zinc Iron Flow Battery Operation:

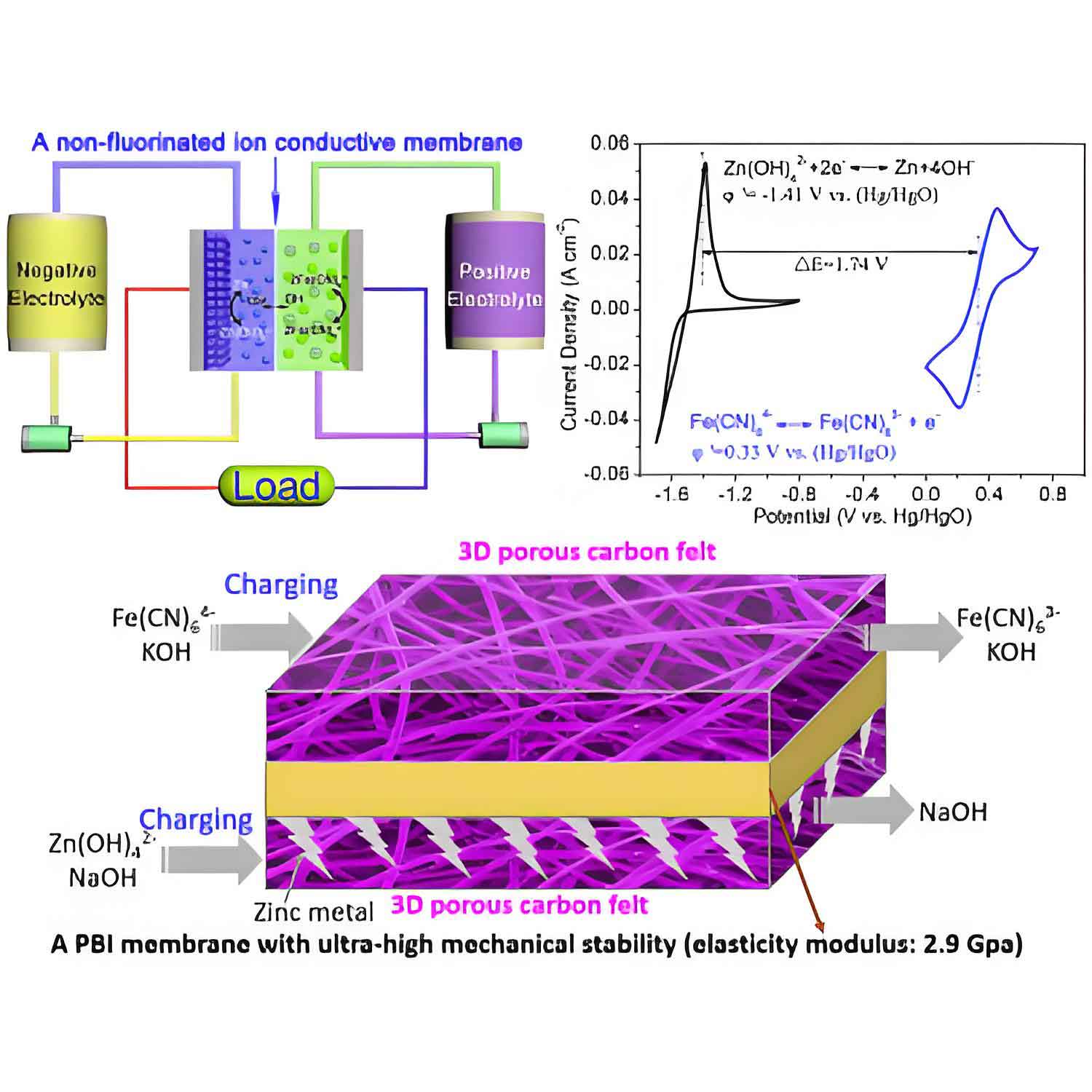

zinc iron flow battery system comprises several key components, including positive and negative electrodes, an electrolyte, and a membrane separator. As illustrated in Figure 1, the positive electrode undergoes the reversible transformation between ferrous (Fe2+) and ferric (Fe3+) ions, while the negative electrode facilitates the deposition and dissolution of zinc. The electrolyte is circulated through the electrodes by pumps, enabling the conversion between chemical and electrical energy within the stack, the core component where the electrochemical reactions occur.
Advantages over Other Energy Storage Technologies:
Table 1 summarizes the comparative advantages of zinc iron flow battery vis-à-vis other prevalent energy storage technologies. Notably, zinc iron flow battery stand out for their flexibility in power and energy capacity configuration, long cycle life, and environmental friendliness.
| Energy Storage Technology | Power (MW) | Energy (MWh) | Response Time | Cycle Life (Cycles) | Round-Trip Efficiency (%) | Key Advantages | Key Drawbacks |
|---|---|---|---|---|---|---|---|
| Pumped Hydro Storage | 100-200 | 4-10 | Minutes | Unlimited | 70-85 | Large-scale, mature | Slow response, geographical constraints |
| Compressed Air Energy Storage | 10-300 | 1-2 | Minutes | ≥70 | Long lifespan | Large-scale | Slow response, geographical constraints |
| Flywheel Energy Storage | 0.005-1.5 | 0.0015-0.25 | Milliseconds | ≥20,000 | 85-90 | High power density | High cost, noise |
| Lead-Acid Batteries | kW-50 | 1 min-3 h | Hundreds of ms | 500-1,200 | 75 | Mature technology, low cost | Short lifespan, environmental concerns |
| Lithium-Ion Batteries | kW-MW | Minutes-hours | Hundreds of ms | 1,000-10,000 | 90 | High energy density | Safety concerns, limited lifespan |
| Flow Batteries | 5 kW-tens of MW | 1-20 h | Hundreds of ms | ≥12,000 | 75-85 | Long lifespan, scalable, environmental friendly | Lower energy density, higher cost |
| Zinc Iron Flow Battery | 5 kW-tens of MW | 1-20 h | Hundreds of ms | ≥12,000 | 75-85 | Low cost, high safety, scalable | Lower energy density |
Table 1: Comparative advantages of various energy storage technologies.
Technical Characteristics of Zinc Iron Flow Batteries
System Configuration:
zinc iron flow battery adopt a modular design, facilitating easy scalability and maintenance. The energy and power capacities can be independently adjusted by increasing or decreasing the size of the electrolyte tanks and the number of stacks, respectively. This flexibility is especially advantageous in large-scale projects where energy demands may fluctuate over time.
Electrochemical Reactions:
The fundamental electrochemical reactions in zinc iron flow battery are as follows:
- Positive Electrode: Fe^2+ ↔ Fe^3+ + e^-
- Negative Electrode: Zn2+ + 2e- ↔ Zn
- Overall Reaction: Zn + Fe^3+ ↔ Zn^2+ + Fe^2+
These reactions occur in alkaline media, contributing to the battery’s enhanced stability and safety compared to acid-based systems like vanadium redox flow batteries.
Material Considerations:
The choice of electrode materials significantly influences the performance of zinc iron flow battery. Highly conductive, corrosion-resistant materials are preferred to optimize power density and cycle life. Furthermore, the abundant availability of zinc and iron reduces raw material costs, making zinc iron flow battery economically viable at large scales.
Table 2: Advantages and Limitations of Zinc Iron Flow Batteries
| Advantage | Description |
|---|---|
| Low Cost | Abundant raw materials (zinc and iron) reduce costs. |
| Scalability | Independent power and energy capacity configurations. |
| Long Cycle Life | Durability enables extended operational lifespan. |
| High Safety | Alkaline electrolyte minimizes hazards. |
| Environmental Friendliness | Non-toxic materials minimize environmental impact. |
| Limitation | Description |
|---|---|
| Lower Energy Density | Compared to some other battery technologies. |
| Potential Cross-Contamination | Of electrolytes during long-term operation. |
Table 2: Summary of advantages and limitations of zinc iron flow batteries.
Applications of Zinc Iron Flow Batteries in Energy Storage Systems
Grid-Side Applications:
ZIFBs offer significant potential for enhancing grid stability and reliability. By integrating zinc iron flow battery into transmission and distribution networks, utilities can improve transmission capacity, address peak demand, and provide ancillary services such as frequency regulation and voltage support.
Generation-Side Applications:
Renewable energy sources like wind and solar are inherently intermittent, leading to power fluctuations and, in some cases, curtailment (e.g., wind and solar curtailment). zinc iron flow battery can be deployed at renewable energy facilities to smooth output and mitigate curtailment, improving the overall efficiency and economics of these installations.
Customer-Side Applications:
For commercial and industrial customers, zinc iron flow battery can enable demand response programs, peak shaving, and energy arbitrage, leading to cost savings. For residential customers, zinc iron flow battery can provide backup power during grid outages and optimize self-consumption of rooftop solar power.
Real-World Case Studies
Kailuan Smart Energy Demonstration Project, China:
This project deployed a 200 kW/600 kWh zinc iron flow battery system in a containerized design, effectively mitigating wind and solar curtailment and improving grid stability. The system’s modular architecture facilitated easy installation and maintenance.
Table 3: Key Performance Indicators of the Kailuan Project
| Parameter | Value |
|---|---|
| Installed Capacity | 200 kW |
| Energy Capacity | 600 kWh |
| System Design | Containerized |
| Main Application | Curtailment mitigation, grid stability |
| Operational Duration | Ongoing |
Table 3: Summary of the Kailuan Smart Energy Demonstration Project utilizing zinc iron flow batteries.
Jiangsu Customer-Side Demonstration Project:
This project installed a similar 200 kW/600 kWh zinc iron flow battery system to improve energy efficiency and reliability for industrial customers. The system’s ability to store energy during off-peak hours and discharge during peak demand resulted in significant cost savings.
Table 4: Key Performance Indicators of the Jiangsu Customer-Side Project
| Parameter | Value |
|---|---|
| Installed Capacity | 200 kW |
| Energy Capacity | 600 kWh |
| System Design | Containerized |
| Main Application | Peak shaving, demand response, backup power |
| Operational Duration | Ongoing |
Table 4: Summary of the Jiangsu customer-side demonstration project utilizing zinc iron flow batteries.
Future Prospects and Challenges
Cost Reduction:
The primary driver for widespread adoption of zinc iron flow battery will be cost reduction. As production volumes increase and manufacturing processes mature, economies of scale will drive down costs, making zinc iron flow battery even more competitive.
Performance Enhancement:
Research efforts are underway to improve the energy density and power output of zinc iron flow battery. Advanced electrode materials and electrolyte formulations promise to push the boundaries of performance, making zinc iron flow battery suitable for an even wider range of applications.
Standardization and Regulation:
Establishing industry standards and obtaining regulatory approvals will be crucial for commercializing zinc iron flow battery at scale. Collaboration between researchers, manufacturers, utilities, and regulators will accelerate this process.
Table 5: Key Future Prospects and Challenges for Zinc Iron Flow Batteries
| Prospects/Challenges | Description |
|---|---|
| Cost Reduction | Economies of scale through increased production volumes. |
| Performance Enhancement | Advanced materials and electrolyte formulations. |
| Standardization and Regulation | Establishment of industry standards and regulatory approvals. |
| Grid Integration | Seamless integration with diverse grid architectures and operations. |
| Recycling and End-of-Life Management | Developing sustainable recycling processes for battery components. |
Table 5: Summary of key future prospects and challenges for zinc iron flow batteries.
Conclusion
Zinc iron flow batteries (ZIFBs) emerge as promising candidates for large-scale energy storage applications. Their low cost, scalability, long cycle life, and environmental friendliness position them as ideal solutions for mitigating renewable energy intermittency and enhancing grid stability. As research and development continue to advance, addressing challenges related to cost, performance, and standardization, zinc iron flow battery poised to revolutionize the energy storage landscape. With their widespread adoption, the transition to a sustainable, reliable, and efficient energy system becomes increasingly feasible.
