Overview of Technical Specifications

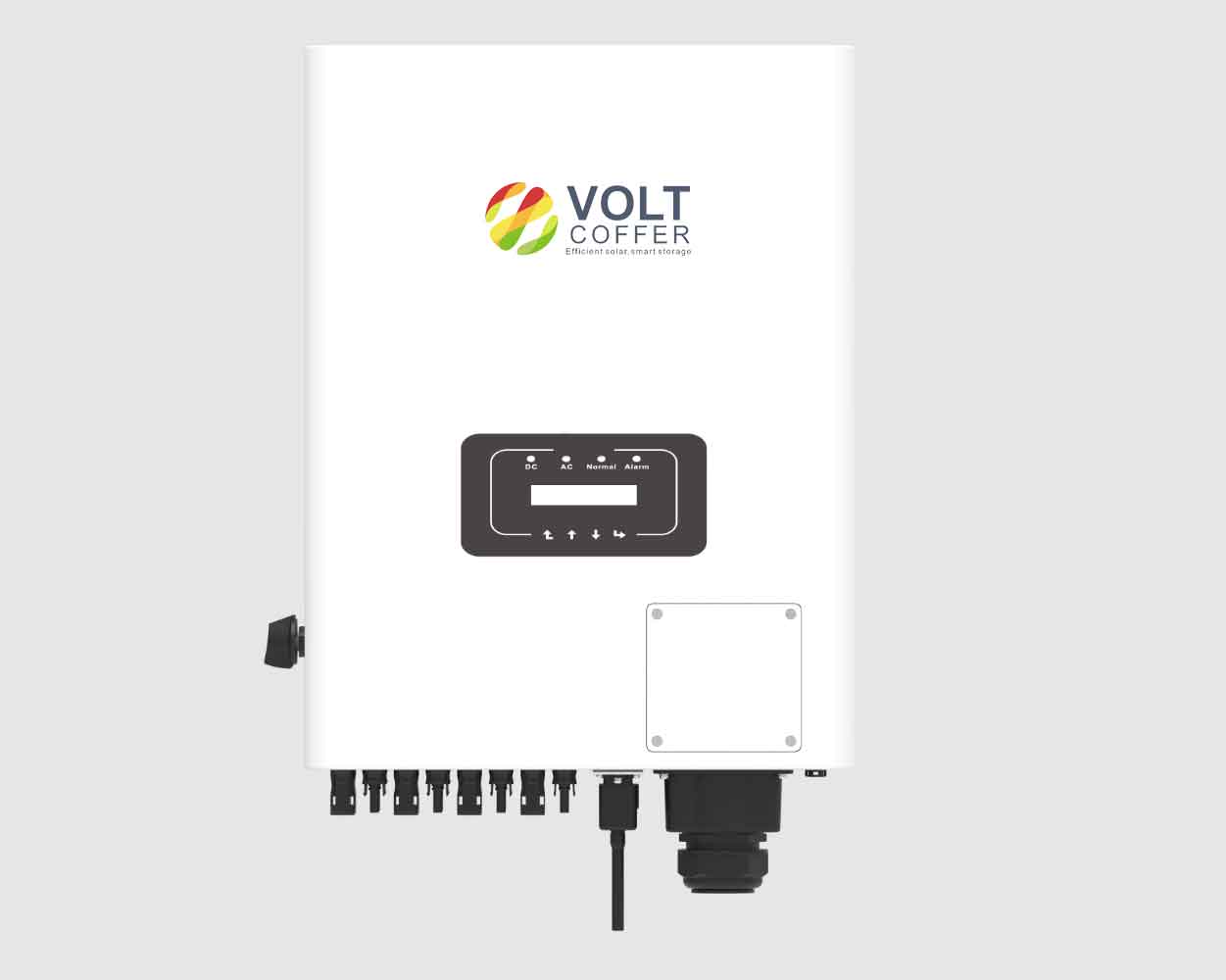

The VoltCoffer three-phase on-grid inverter is designed to seamlessly integrate into existing electrical infrastructure with a voltage specification of 230/400Vac, making it compatible with utility grids globally without the need for an additional transformer. This feature not only simplifies the installation process but also reduces initial setup costs.
MPP Trackers and String Pairs
One of the standout features of this inverter is its six Maximum Power Point (MPP) trackers and support for 24 pairs of strings. MPP trackers are crucial for maximizing the efficiency of solar panels as they ensure that the panels operate at their optimal power point throughout the day, regardless of the environmental conditions. The ability to connect 24 pairs of strings allows for a scalable setup, catering to both small-scale residential systems and larger commercial deployments.
Maximum DC Input
The inverter’s maximum DC input capacity of 150kW permits the connection of a significant number of PV modules, thus amplifying the total power generation capability without the need for additional inverters. This capacity is particularly beneficial in commercial settings where large amounts of power are necessary to sustain operations. It also means fewer inverters are required for large installations, potentially lowering the overall investment in equipment.
Implications and Innovations
This combination of high input capacity and extensive MPP tracking makes the VoltCoffer inverter not only a powerful solution for large-scale solar applications but also a smart investment due to its operational efficiencies and potential cost savings. Furthermore, the integration of advanced technologies in tracking and management of power contributes significantly to the overarching goal of making renewable energy more accessible and effective across diverse environments and applications.
Installation Process
Pre-Installation Considerations
Before the installation of the VoltCoffer three-phase on-grid inverter begins, it is crucial to perform a site assessment to ensure compatibility with the existing electrical infrastructure. Factors like site exposure to sunlight, roof integrity, and grid connection points must be evaluated. Additionally, acquiring the necessary permits from local authorities is essential to comply with regional regulations.
Installation Steps
- Mounting the Inverter: The inverter should be securely mounted on a wall or a frame that supports its weight and provides adequate ventilation. It should be placed in a location that minimizes exposure to direct sunlight and moisture.
- Wiring Connections: Electrical connections from the PV panels, to the inverter, and then to the grid must be established. This involves laying out cables, installing protection devices such as circuit breakers, and ensuring all connections are tight and secure.
- Grid Integration: Connecting the inverter to the utility grid is a critical step that might require coordination with the local power company. This process ensures that the generated power can be correctly metered and accounted for.
- Safety Checks and Initial Testing: After installation, comprehensive safety checks must be conducted to ensure that all components are functioning correctly and safely. Initial testing of the inverter under live conditions is performed to observe any discrepancies and rectify them immediately.
Operational Efficiency
Maximizing Power Output
The operational efficiency of the VoltCoffer inverter is characterized by its ability to maximize power output from the connected PV modules. Its design to operate without a transformer reduces energy losses typically associated with energy conversion, thereby enhancing overall system efficiency.
Real-Time Performance Monitoring
The inverter is equipped with an intelligent monitoring system that tracks performance metrics such as voltage, current, power output, and overall system health. This data is crucial for assessing the efficiency of the inverter and making adjustments to optimize energy production.
Maintenance and Operation
Routine Maintenance
Routine maintenance for the VoltCoffer inverter includes cleaning the components, checking the electrical connections for corrosion or wear and tear, and ensuring that the firmware of the system is regularly updated. These maintenance tasks help in prolonging the life of the inverter and maintaining its efficiency.
Troubleshooting
The LCD display on the inverter provides essential information and diagnostic codes that can help identify and resolve common issues. The user manual also includes detailed troubleshooting steps that owners can follow to address problems without needing immediate professional help.
Applications and Use Cases
Residential and Commercial Use
The VoltCoffer three-phase on-grid inverter is suitable for both residential and commercial installations. In residential settings, it supports home energy needs by converting solar energy into usable power efficiently. For commercial establishments, it can handle larger energy demands, making it an ideal choice for businesses aiming to reduce their carbon footprint and energy costs.
Industrial Applications
In industrial settings, the robust design and high-capacity output of the VoltCoffer inverter make it capable of supporting large-scale manufacturing processes. It can reliably provide the necessary power for heavy machinery and equipment, contributing to substantial energy savings and sustainability in industrial operations.
