As the demand for renewable energy sources grows, solar power has emerged as a key player due to its abundance and environmental benefits. My research focuses on enhancing the efficiency and stability of photovoltaic (PV) systems through advanced maximum power point tracking (MPPT) techniques and the integration of hybrid energy storage systems. In this article, I explore the challenges and solutions in optimizing PV power generation under varying environmental conditions, such as partial shading, and the role of solar energy storage in grid-connected applications. I begin by discussing the fundamental models of PV cells and arrays, followed by an analysis of traditional MPPT methods and their limitations. I then propose improved algorithms, including a partitioned variable-step perturbation observation method and a fusion-based adaptive particle swarm optimization approach, to address issues like local maxima trapping and slow convergence. Finally, I examine the application of hybrid energy storage, combining batteries and supercapacitors, in three-phase grid-connected PV systems to mitigate power fluctuations and improve system reliability. Throughout this work, I emphasize the importance of solar energy storage in achieving a sustainable energy future.
Photovoltaic cells convert solar energy into electrical energy through the photovoltaic effect, and their output characteristics are influenced by factors like irradiance and temperature. The mathematical model of a PV cell can be represented using a single-diode equivalent circuit, where the output current I is given by:
$$ I = I_{ph} – I_s \left[ \exp\left(\frac{q(U + IR_s)}{AkT}\right) – 1 \right] – \frac{U + IR_s}{R_{sh}} $$
Here, ( I_{ph} ) is the photocurrent, ( I_s ) is the diode saturation current, ( q ) is the electron charge, ( U ) is the output voltage, ( R_s ) and ( R_{sh} ) are series and shunt resistances, ( A ) is the diode ideality factor, ( k ) is Boltzmann’s constant, and ( T ) is the temperature. For practical applications, I use an engineering model that simplifies this equation based on standard test conditions (STC), with parameters such as open-circuit voltage ( U_{OC} ), short-circuit current ( I_{SC} ), and maximum power point voltage ( U_m ) and current ( I_m ). The power output P can be expressed as:
$$ P = I_{SC} \left[1 – C_1 \left(\exp\left(\frac{U}{C_2 U_{OC}}\right) – 1\right)\right] U $$
where ( C_1 ) and ( C_2 ) are constants derived from empirical data. Under partial shading conditions (PSC), the P-U curve of a PV array exhibits multiple peaks, complicating MPPT. For instance, in a 5×1 series-connected PV array, the number of peaks corresponds to the number of distinct shading patterns on the series modules. This multi-peak behavior necessitates advanced MPPT strategies to avoid local maxima and ensure global maximum power point (GMPP) tracking.
Traditional MPPT methods, such as constant voltage, incremental conductance, and perturbation observation (PO), are widely used due to their simplicity. However, they struggle under PSC. The PO method, for example, adjusts the duty cycle of a DC-DC converter (e.g., a Boost converter) to perturb the operating point and observe power changes. The Boost converter’s input-output relationship is given by:
$$ U_{out} = \frac{U_{in}}{1 – D} $$
where D is the duty cycle. The input resistance ( R_{in} ) seen by the PV array is:
$$ R_{in} = (1 – D)^2 R_{load} $$
This allows impedance matching for maximum power transfer. However, fixed-step PO suffers from a trade-off between tracking speed and steady-state oscillation. To address this, I propose a partitioned variable-step PO (VS-PO) method that divides the P-U curve into regions: regions A and C use a large fixed step for fast tracking, while region B near the MPP uses a variable step based on the slope dP/dU to reduce oscillations. The step size d is defined as:
$$ d = \begin{cases}
d_1 = a \cdot 10^{-x} & \text{for regions A and C} \
d_2 = k \cdot 10^{-x-1} & \text{for region B}
\end{cases} $$
where a, x, and k are constants. Simulation results in MATLAB/Simulink show that VS-PO achieves faster convergence and lower oscillation compared to traditional PO, as summarized in Table 1.
| Method | Tracking Time (s) | Steady-State Oscillation | Efficiency (%) |
|---|---|---|---|
| Fixed-Step PO (Large d) | 0.15 | High | 95.2 |
| Fixed-Step PO (Small d) | 0.30 | Low | 98.5 |
| VS-PO | 0.18 | Very Low | 99.8 |
Despite these improvements, traditional methods often fail under PSC, leading to the adoption of intelligent algorithms like particle swarm optimization (PSO). PSO simulates social behavior to search for the GMPP by updating particle positions (voltages) and velocities (duty cycle changes). The update equations are:
$$ v_i^{k+1} = \omega v_i^k + C_1 r_1 (P_{best,i} – x_i^k) + C_2 r_2 (G_{best} – x_i^k) $$
$$ x_i^{k+1} = x_i^k + v_i^{k+1} $$
where ( \omega ) is the inertia weight, ( C_1 ) and ( C_2 ) are learning factors, and ( r_1 ), ( r_2 ) are random numbers. However, PSO can exhibit slow convergence and large power oscillations. I enhance it with an adaptive PSO based on natural selection (NSA-PSO), where ( \omega ), ( C_1 ), and ( C_2 ) adapt linearly with the number of natural selection cycles s:
$$ \omega = \omega_{min} + (\omega_{max} – \omega_{min}) \frac{s}{S} $$
$$ C_1 = C_{1min} + (C_{1max} – C_{1min}) \frac{s}{S} $$
$$ C_2 = C_{2min} + (C_{2max} – C_{2min}) \frac{s}{S} $$
Here, S is the maximum number of cycles. Additionally, I incorporate a natural selection strategy that replaces poorly performing particles with new ones generated within the bounds of top performers, improving convergence speed. To further boost accuracy, I fuse NSA-PSO with VS-PO, creating a hybrid MPPT control strategy. This fusion leverages NSA-PSO for global search and VS-PO for local refinement, achieving high precision and efficiency. In a PV-load-storage system simulation, the fused method reduces tracking time to 0.22 s and increases efficiency to 99.99%, outperforming standard PSO and butterfly optimization algorithms (BOA), as shown in Table 2.
| Algorithm | Tracking Time (s) | Power Oscillation | Efficiency (%) |
|---|---|---|---|
| PSO | 0.29 | High | 97.40 |
| BOA | 0.31 | Medium | 98.18 |
| NSA-PSO & VS-PO | 0.22 | Low | 99.99 |
The integration of solar energy storage is crucial for stabilizing PV systems in grid-connected applications. I develop a three-phase grid-connected system with a hybrid energy storage system (HESS) comprising lithium-ion batteries and supercapacitors. The battery model includes state-of-charge (SOC) dynamics:
$$ SOC = SOC_0 – \frac{\int I_b \, dt}{C_{max}} $$
where ( I_b ) is the battery current and ( C_{max} ) is the capacity. The supercapacitor model uses a classic RC equivalent:
$$ U = I R_{sc} + \frac{1}{C} \int I \, dt $$
The HESS is connected to the DC bus via bidirectional Buck-Boost converters, which manage power flow between storage elements and the grid. The converter’s state-space model in Boost mode is:
$$ \frac{d i_L}{d t} = \frac{U_o – (1 – D) U_{dc}}{L} $$
$$ \frac{d U_{dc}}{d t} = \frac{(1 – D) i_L – \frac{U_{dc}}{R}}{C} $$
Power allocation in the HESS uses a filtering strategy, where a low-pass filter separates the power demand ( P_{HESS} ) into low-frequency components handled by the battery and high-frequency components by the supercapacitor:
$$ P_{bat,ref} = \frac{1}{1 + \tau s} P_{HESS} $$
$$ P_{sc,ref} = P_{HESS} – P_{bat,ref} $$

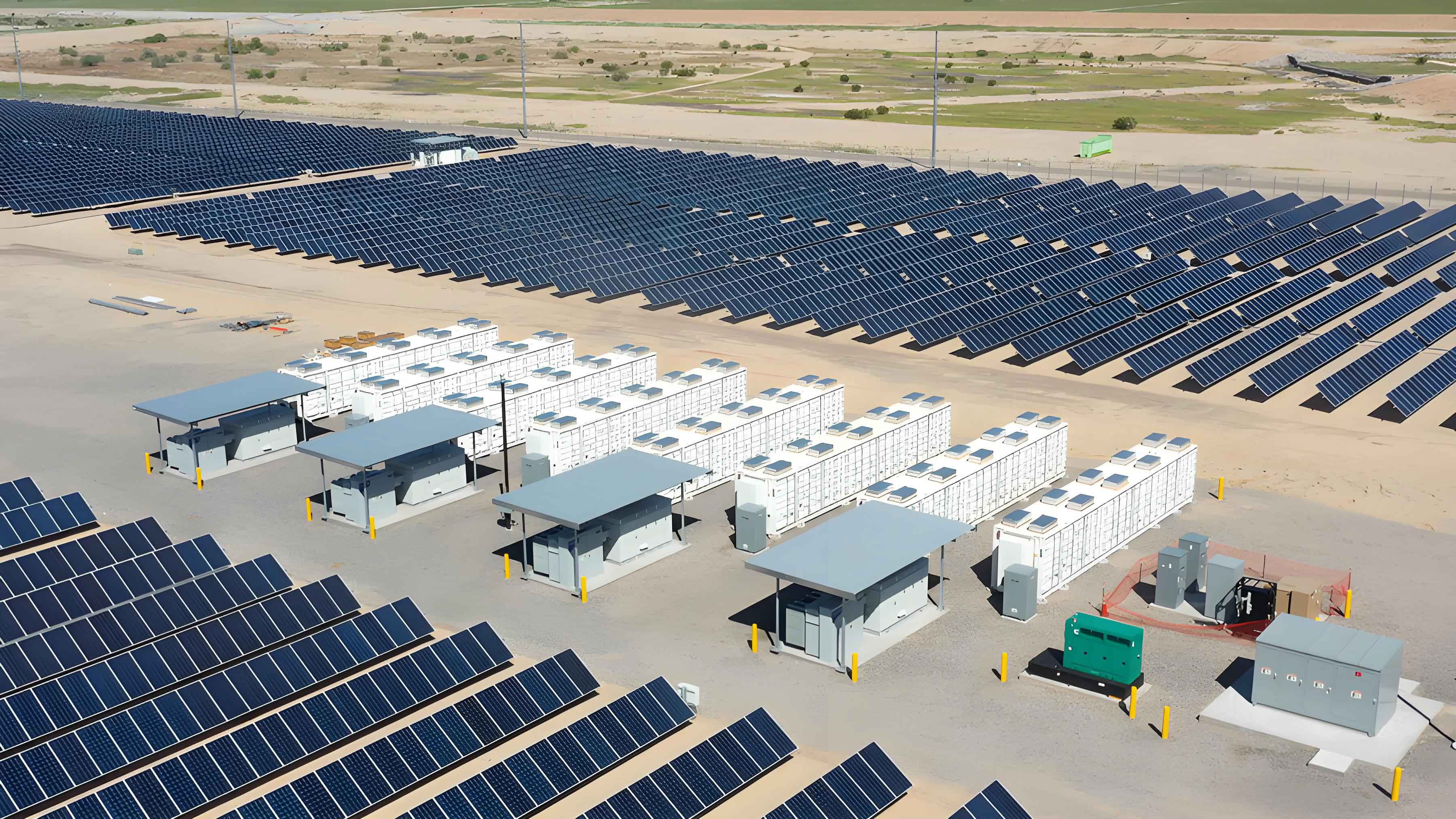

Here, ( \tau ) is the time constant. This approach smooths battery output, extends its lifespan, and enhances system reliability. In simulations, the HESS effectively mitigates power fluctuations, as illustrated in the following figure, which highlights the synergy between solar generation and energy storage.
For grid connection, I implement a three-phase inverter with LCL filters to reduce harmonics. The inverter control uses a dual-loop strategy: an outer voltage loop sets the reference current, and an inner current loop in the dq-frame ensures precise tracking. The LCL filter parameters are designed to limit total harmonic distortion (THD) below 5%. For a 6 kW system, the inductors and capacitor values are calculated as:
$$ L_1 = 5.5 \, \text{mH}, \quad L_2 = 2.75 \, \text{mH}, \quad C = 19.74 \, \mu\text{F} $$
Simulation results confirm stable grid synchronization with THD under 2.21%, meeting grid standards. The HESS maintains power balance during irradiance changes, demonstrating the critical role of solar energy storage in renewable integration.
In conclusion, my research demonstrates that advanced MPPT algorithms and hybrid energy storage systems significantly improve the performance of PV systems. The proposed VS-PO and NSA-PSO methods address key challenges under partial shading, while the HESS ensures grid stability. Future work will focus on scaling these techniques for larger PV arrays and real-world implementations. The continuous innovation in solar energy storage technologies will be pivotal for achieving global energy sustainability.
