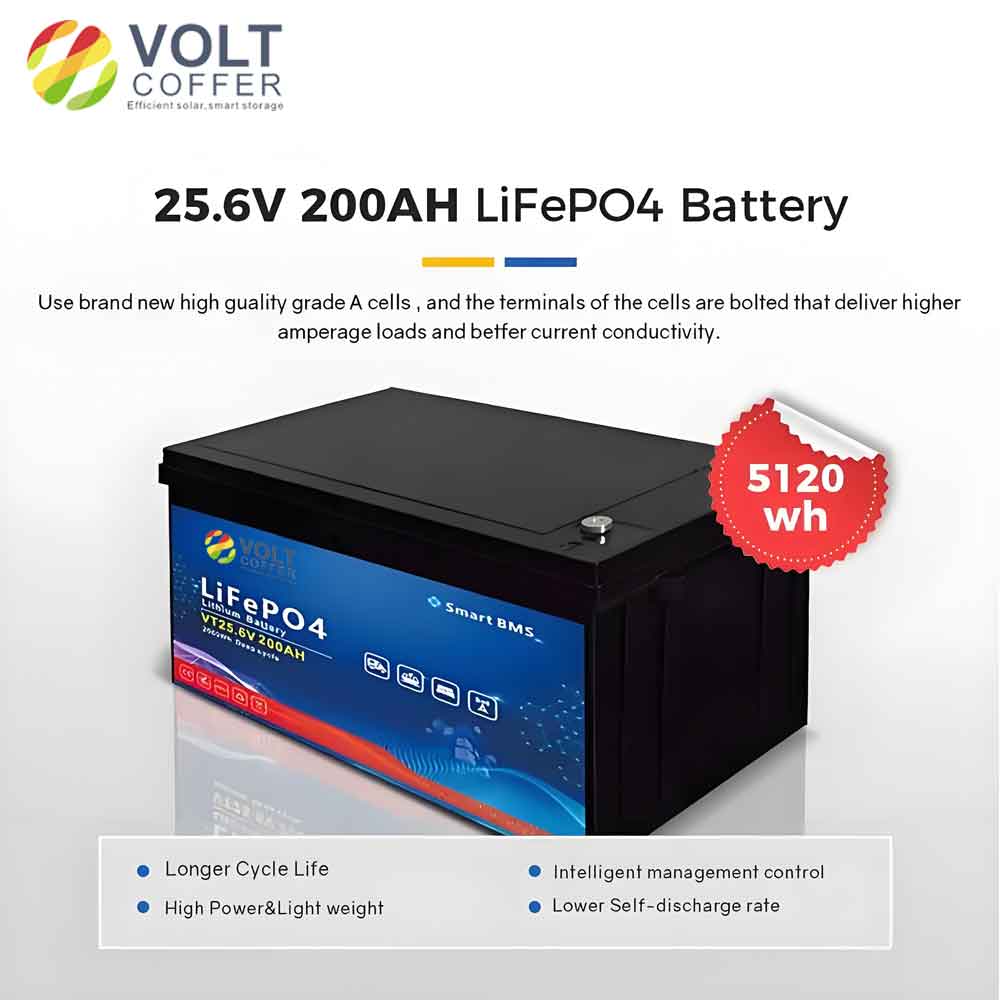

VoltCoffer 24v 200Ah 5120Wh LifePoe4 energy storage battery

Models VC-25100 VC-25200
Chemistry LiFeP04
Nominal Voltage 25.6V
Nominal Capacity 100Ah(C5,25°C) 200Ah(C5,25°C)
Energy 2560Wh 5120Wh
Internal Resistance ≤50mQ
Category:

Features of LiFePO4 Battery

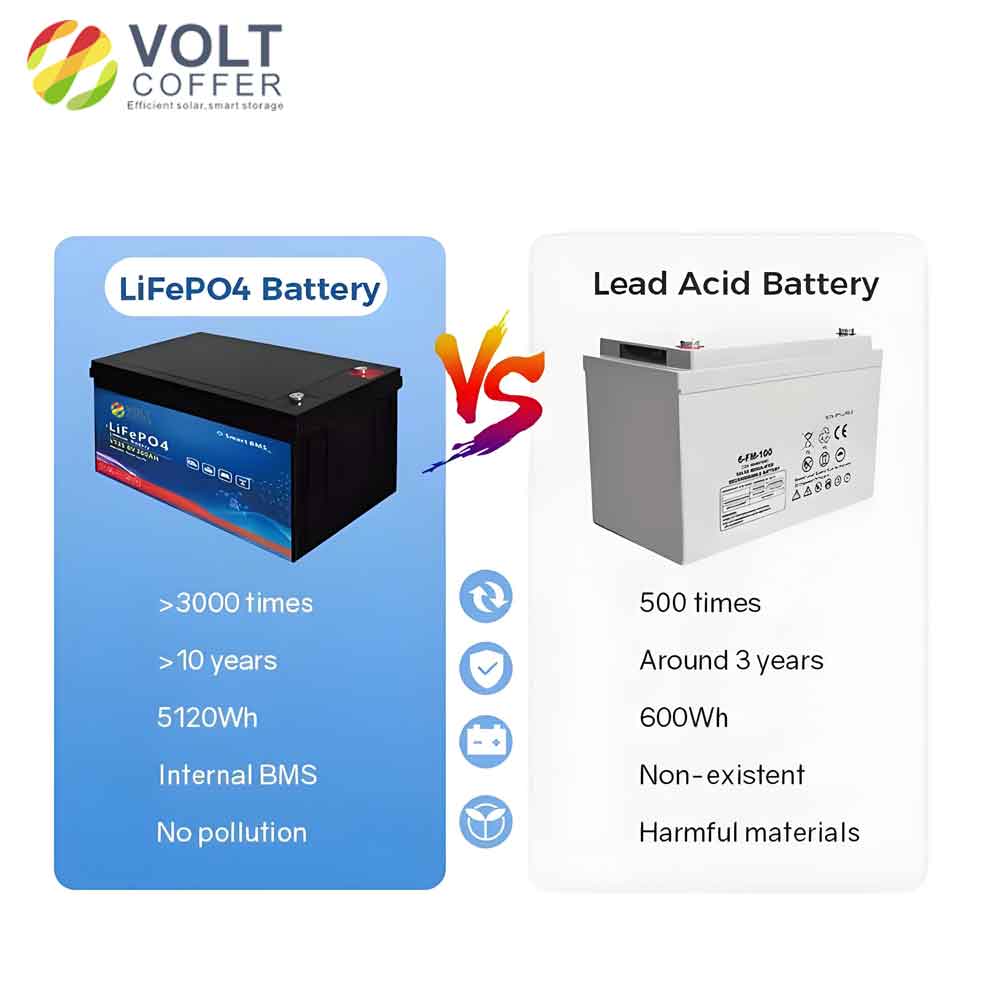

  1. Longer Cycle Life: LiFePO4 batteries boast a significantly longer cycle life compared to traditional Sealed Lead Acid (SLA) batteries. Typically, the cycle life of LiFePO4 batteries is five times greater than that of SLA batteries, ensuring prolonged and reliable performance over many years of use.
  2. High Power & Lightweight: LiFePO4 batteries deliver twice the power of SLA batteries while being only half the weight. This remarkable power-to-weight ratio makes them highly efficient and practical for transportation and installation. The reduced weight not only eases handling but also contributes to overall system efficiency and mobility.
  3. Intelligent Management Control: Equipped with an advanced Battery Management System (BMS), LiFePO4 batteries ensure optimal performance and safety. The intelligent BMS monitors and manages the battery’s operation, protecting it from overcharging, over-discharging, overheating, and other potential issues. This system ensures the batteries operate in perfect condition, maximizing their lifespan and reliability.
  4. Lower Self-Discharge Rate: LiFePO4 batteries have a significantly lower self-discharge rate compared to SLA batteries. This characteristic allows them to be stored for longer periods without losing their charge, making them ideal for applications where long-term storage is required. The lower self-discharge rate ensures that the batteries are ready for use whenever needed, maintaining their effectiveness over time.

By incorporating these features, LiFePO4 batteries offer a superior alternative to traditional SLA batteries. They provide longer cycle life, higher power output, lighter weight, intelligent management, and lower self-discharge rates, making them an excellent choice for a wide range of applications, from renewable energy systems to portable power solutions.

Models VC-25100 VC-25200
Chemistry LiFeP04
Nominal Voltage 25.6V
Nominal Capacity 100Ah(C5,25°C) 200Ah(C5,25°C)
Energy 2560Wh 5120Wh
Internal Resistance ≤50mQ
Gycle Life >3000cycles@1C80%DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99%@10
Standard Charge
Charge Voltage 29.2±0.2V
Charge Mode 0.2C to 29.2V,then 29.2V,charge current to 0.02C(CC/CV)
Charger Current 100A 200A
Max.Charge Current 100A 200A
Charge Cut-off Voltage 31.2V±0.2V
Standard Discharge
Rated Discharge Current 100A 200A
Max Discharge Current 100A 200A
Max.Pulse Current 600A(<3s)
Discharge Cut-off Voltage 20V
Charge Temperature 0°C to 45*C(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20°C to 60°C(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0°C to 40*C(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP65
Mechanical
BMS 4P SMART Bluetooth
Plastic Case ABS

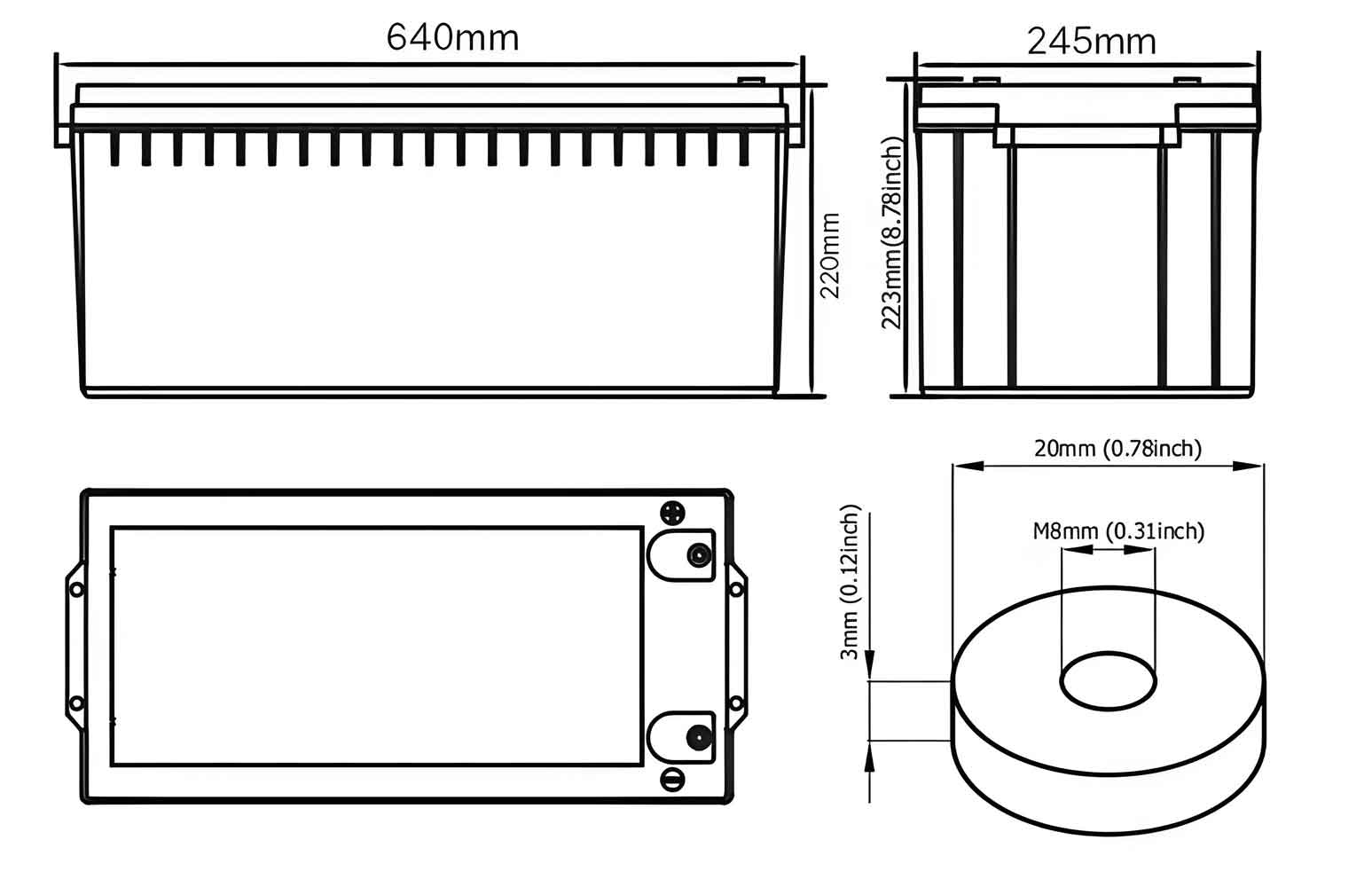

Dimensions(in./mm.) 483*170-240mm 640*245*220mm
Weight(lbs./kg.) 19kg 38kg
Terminal M8
