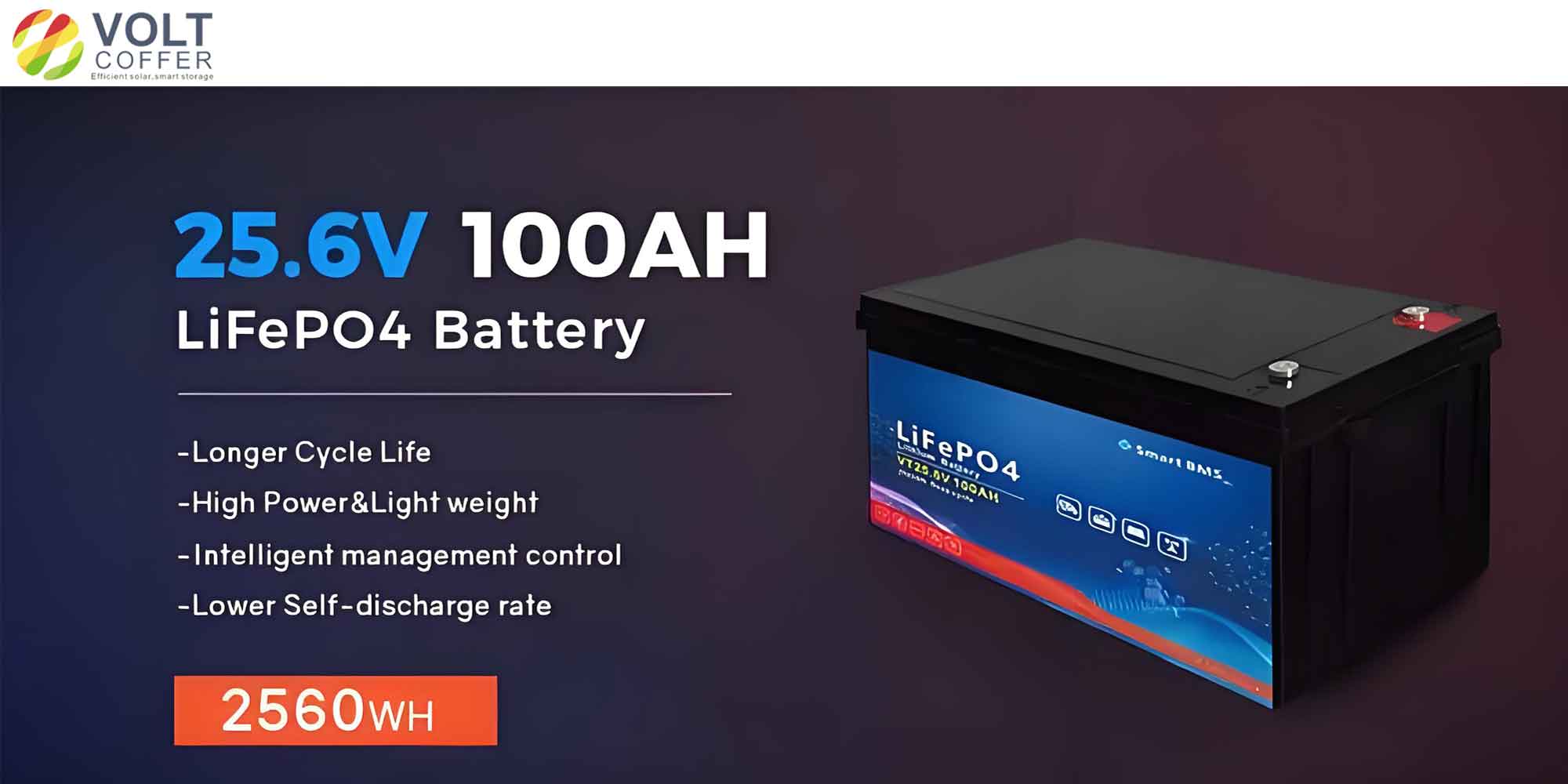

VoltCoffer 24v 100Ah 2560Wh LifePoe4 Energy Storage Battery

Models VC-25100 VC-25200
Chemistry LiFeP04
Nominal Voltage 25.6V
Nominal Capacity 100Ah(C5,25°C) 200Ah(C5,25°C)
Energy 2560Wh 5120Wh
Internal Resistance ≤50mQ
Category:

Features of LiFePO4 Battery

  1. Longer Cycle Life: LiFePO4 batteries offer a cycle life that is up to five times longer than that of traditional Sealed Lead Acid (SLA) batteries. This extended cycle life ensures long-lasting and reliable performance, making LiFePO4 batteries a more sustainable and cost-effective choice over time.
  2. High Power & Lightweight: LiFePO4 batteries deliver twice the power output of SLA batteries while weighing only half as much. This high power-to-weight ratio enhances their efficiency and practicality, making them easier to transport and install. The reduced weight also contributes to improved overall system performance and mobility.
  3. Intelligent Management Control: LiFePO4 batteries are equipped with an advanced Battery Management System (BMS). This intelligent BMS ensures the batteries operate safely and efficiently, protecting against overcharging, over-discharging, overheating, and other potential issues. The BMS maintains the batteries in optimal condition, thereby extending their lifespan and ensuring reliable performance.
  4. Lower Self-Discharge Rate: LiFePO4 batteries have a significantly lower self-discharge rate compared to SLA batteries. This means they can be stored for longer periods without losing their charge, making them ideal for applications requiring long-term storage. The lower self-discharge rate ensures that the batteries remain ready for use whenever needed, maintaining their effectiveness and reliability over time.

By incorporating these features, LiFePO4 batteries stand out as a superior alternative to traditional SLA batteries. They provide a longer cycle life, higher power output, lighter weight, intelligent management control, and a lower self-discharge rate, making them an excellent choice for a wide range of applications, from renewable energy systems to portable power solutions. These advantages make LiFePO4 batteries a reliable, efficient, and sustainable option for modern energy storage needs.

Models VC-25100 VC-25200
Chemistry LiFeP04
Nominal Voltage 25.6V
Nominal Capacity 100Ah(C5,25°C) 200Ah(C5,25°C)
Energy 2560Wh 5120Wh
Internal Resistance ≤50mQ
Gycle Life >3000cycles@1C80%DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99%@10
Standard Charge
Charge Voltage 29.2±0.2V
Charge Mode 0.2C to 29.2V,then 29.2V,charge current to 0.02C(CC/CV)
Charger Current 100A 200A
Max.Charge Current 100A 200A
Charge Cut-off Voltage 31.2V±0.2V
Standard Discharge
Rated Discharge Current 100A 200A
Max Discharge Current 100A 200A
Max.Pulse Current 600A(<3s)
Discharge Cut-off Voltage 20V
Charge Temperature 0°C to 45*C(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20°C to 60°C(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0°C to 40*C(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP65
Mechanical
BMS 4P SMART Bluetooth
Plastic Case ABS
Dimensions(in./mm.) 483*170-240mm 640*245*220mm
Weight(lbs./kg.) 19kg 38kg
Terminal M8
