Input Data(DC)
|
MPPT voltage range |
24V-50V |
|
Operating voltage range |
16V-60V |
|
Max. short circuit current |
30A*1/20A*2 |
|
Max. input current |
36A*1/13A*2 |
Output Data(AC)
|
Rated Output Power |
800W |
|
Maximum Output Power |
800VA (Vac≥230,Vmp≥35) |
|
Rated voltage/range |
230V(176V~265V) |
|
Rated Frequency/range |
50Hz/60Hz (46.5-62)Hz |
|
Maximum continuous output current |
3.64A |
|
Maximum Harmonic Distortion |
<4% |
|
Power Factor |
>0.99 (default) |
Efficiency
|
Peak efficiency |
96.5% |
|
MPPT efficiency |
>99.8% |
|
Night power consumption |
<100mW |
Other Parameters
|
Communication method |
Wi-Fi |
|
Safety protection class |
Class I |
|
Enclosure rating |
IP67 |
|
Operating temperature |
-40℃ to +70℃ |
|
Storage temperature |
-40℃ to +85℃ |
|
Relative humidity |
0-98% |
|
Transformer design |
High frequency transformer, Electrical isolated |
|
Overvoltage class |
OVC III (AC), OVC II (PV) |
|
Warranty period |
10 / 25years Optional |
|
Dimensions(L*W*H mm) |
268.5*215*40 |
|
Weight(kg) |
3.6 |
PV Modules Main Specifications
|
Maximum Power (Pmax) |
430 |
|
Voc(V) |
40.1 |
|
Isc(A) |
13.38 |
|
Vmpp(V) |
33.8 |
|
Impp(A) |
12.76 |
|
Efficiency |
21.99% |
Bracket Main Specifications
|

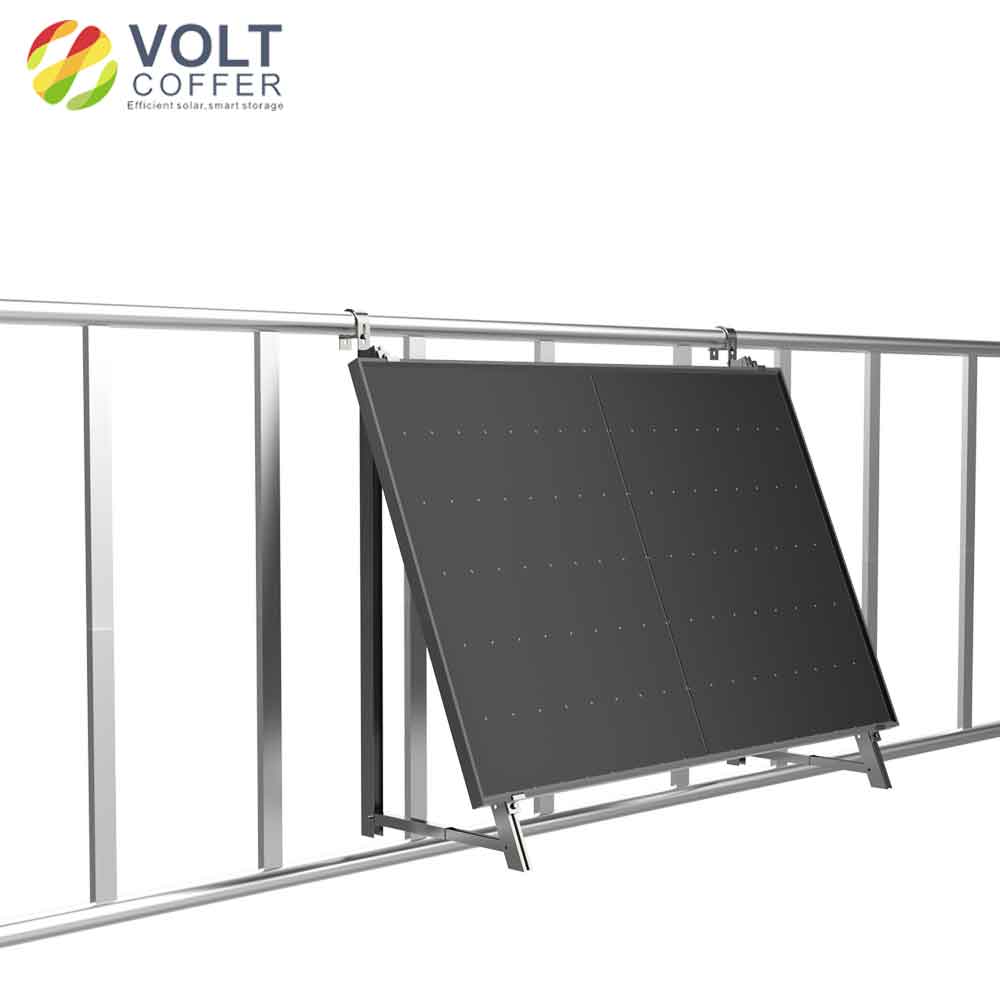

Installation Site |
Balcony |
|
Stand Material |
AL6005-T5& steel |
|
Fastener Material |
SUS304 |
|
Material of Spare Parts |
AL6005-T5 |
AC Plug Cable Main Specifications
|
Cable Length |
5m |
|
Copper Diameter |
1.5mm2 |
|
Cable Length |
Betteri (Female) |
|
Copper Diameter |
EU standard |
