Abstract
As the world grapples with energy crises and environmental degradation, renewable energy sources, particularly solar energy, have gained prominence. Photovoltaic (PV) systems, which convert solar energy into electrical energy, play a pivotal role in this transition. However, the efficiency of PV systems is heavily influenced by the maximum power point tracking (MPPT) control technology. This paper presents an innovative approach to enhance maximum power point tracking (MPPT) performance by combining and modifying the Grey Wolf Optimization (GWO) and Incremental Conductance (INC) algorithms. The proposed Modified GWO-INC algorithm aims to improve tracking speed and accuracy, particularly under dynamic and partial shading conditions. Experimental and simulation results demonstrate that the proposed algorithm significantly outperforms conventional maximum power point tracking (MPPT) methods, with tracking efficiencies exceeding 99% in various scenarios.
1. Introduction
The growing concern over climate change and energy depletion has sparked a global shift towards renewable energy sources. Among these, solar energy, harnessed through photovoltaic (PV) systems, has emerged as a promising alternative to conventional fossil fuels. However, the efficiency of PV systems is often hindered by varying environmental conditions such as solar irradiance and temperature. To address this challenge, Maximum Power Point Tracking (MPPT) control technology has been widely researched and developed.
Maximum power point tracking (MPPT) algorithms aim to maximize the power output of PV systems by dynamically adjusting their operating point to the Maximum Power Point (MPP). Traditional MPPT methods, such as Perturb and Observe (P&O) and Incremental Conductance (INC), while effective under stable conditions, struggle in dynamic environments or under partial shading, leading to decreased system efficiency.
This paper proposes a Modified Grey Wolf Optimization (GWO)-INC algorithm to enhance maximum power point tracking (MPPT) performance. The GWO algorithm, inspired by the social hierarchy and hunting behavior of grey wolves, is modified to improve its global and local search capabilities. The INC algorithm, known for its tracking precision, is also enhanced to speed up the convergence process. By combining these two algorithms, the proposed GWO-INC approach achieves superior tracking performance across a wide range of operating conditions.
2. Literature Review
Maximum power point tracking (MPPT) control technology has been extensively researched over the years, with various algorithms proposed to optimize PV system performance. Table 1 summarizes some of the most common maximum power point tracking (MPPT) techniques and their characteristics.
Table 1: Common MPPT Techniques and Their Characteristics
| MPPT Technique | Advantages | Disadvantages |
|---|---|---|
| P&O | Simple implementation, fast tracking in stable conditions | Oscillation around MPP, prone to mistracking in dynamic environments |
| INC | High tracking accuracy, low steady-state error | Slow tracking speed, sensitive to step size selection |
| GWO | Strong global search capability, few parameters | Local search limitations, prone to premature convergence |
| Hybrid Methods | Combines strengths of multiple algorithms | Complexity may increase, parameter tuning required |
Recent research has focused on hybrid maximum power point tracking (MPPT) methods that combine the strengths of multiple algorithms. For instance, the combination of GWO with other optimization techniques, such as Particle Swarm Optimization (PSO) or Differential Evolution (DE), has shown promising results in improving tracking performance. However, these hybrid approaches often introduce additional complexity and parameter tuning requirements.
3. Photovoltaic System and MPPT Fundamentals
3.1 Photovoltaic System Overview

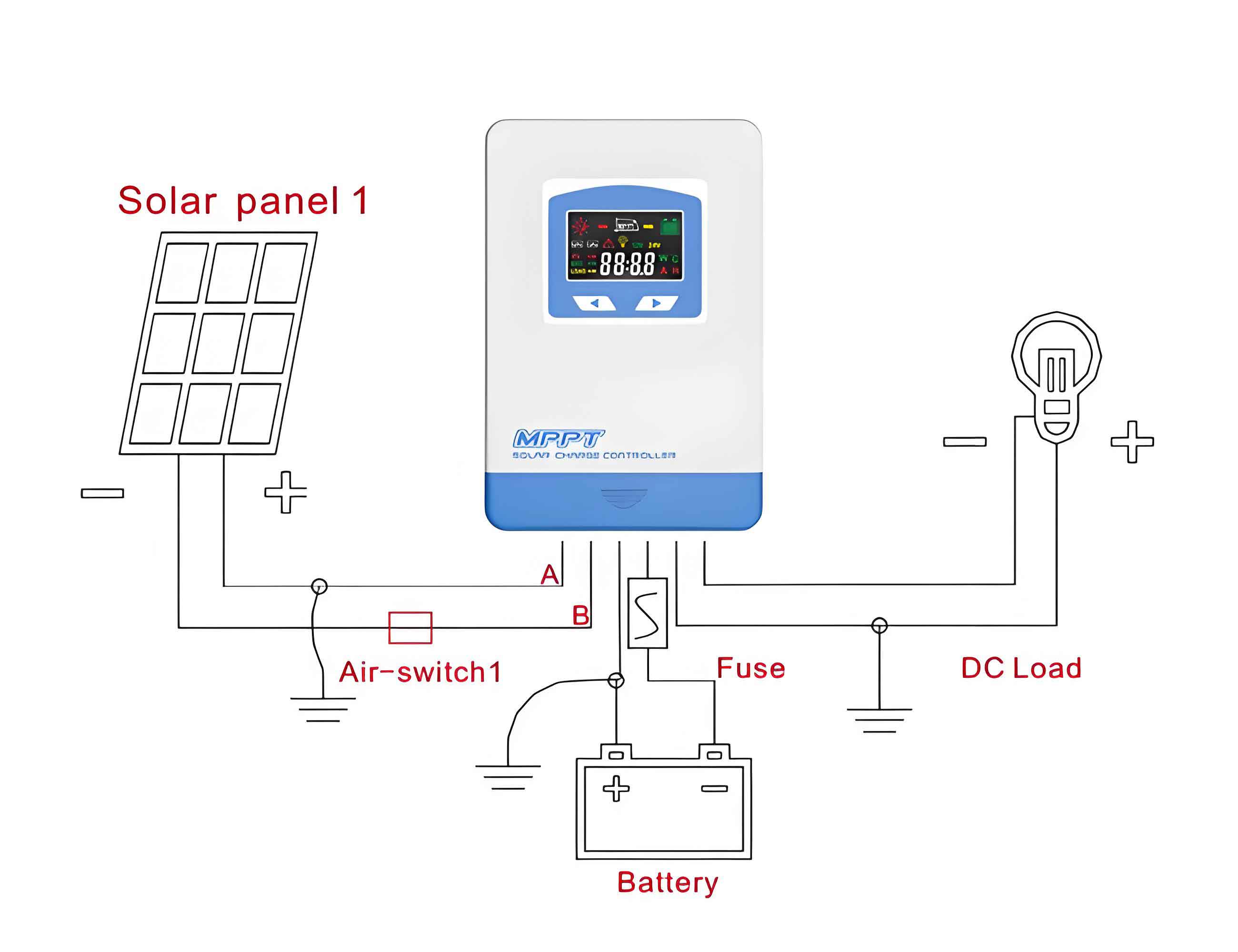

A photovoltaic system typically consists of PV modules, DC-DC converters, inverters, and control circuitry. The PV modules convert solar radiation into direct current (DC) electricity, which is then conditioned and inverted into alternating current (AC) for grid connection or direct use.
Note: The image is illustrative and not part of the actual document content.
3.2 Maximum Power Point Tracking (MPPT)
Maximum power point tracking (MPPT) algorithms dynamically adjust the operating point of the PV system to maximize power output. The MPP is the operating point where the product of voltage (V) and current (I) is maximized (P = VI). Under varying environmental conditions, the MPP shifts along the I-V and P-V curves of the PV module.
4. Modified Grey Wolf Optimization (GWO) Algorithm
The Grey Wolf Optimization (GWO) algorithm, first proposed by Mirjalili et al. (2014), is a population-based metaheuristic optimization technique inspired by the social hierarchy and hunting behavior of grey wolves. The algorithm simulates the leadership structure, decision-making process, and hunting tactics of wolf packs.
4.1 Standard GWO Algorithm
The GWO algorithm consists of four types of wolves: alpha (α), beta (β), delta (δ), and omega (ω). The α wolf leads the pack, the β and δ wolves assist in decision-making, and the ω wolves follow the leaders. The hunting process involves encircling the prey, hunting, and attacking.
The mathematical model of the GWO algorithm can be summarized as follows:
- Encircling: Wolves encircle the prey based on the position of the α wolf.
mathbfD=∣C⋅Xp(t)−X(t)∣
mathbfX(t+1)=Xp(t)−A⋅D
where Xp represents the position of the prey (α wolf), X is the position of a wolf, A and C are coefficient vectors, and t is the current iteration.
- Hunting: Wolves converge towards the prey’s position by updating their positions based on those of the α, β, and δ wolves.
mathbfX1=Xα−A1⋅(Dα)
mathbfX2=Xβ−A2⋅(Dβ)
mathbfX3=Xδ−A3⋅(Dδ)
The final position of a wolf is determined by:
mathbfX(t+1)=3X1+X2+X3
4.2 Modified GWO Algorithm
To enhance the local and global search capabilities of the GWO algorithm, this study incorporates Lévy flight into the updating mechanism. Lévy flight, known for its long jumps and heavy-tailed distribution, helps explore a wider search space, thereby improving the algorithm’s diversity.
The modified position updating equation is given by:
mathbfX(t+1)=Xp(t)−A⋅D+Leˊvy(λ)
where Leˊvy(λ) is the Lévy flight step calculated based on the step size control parameter λ.
5. Enhanced Incremental Conductance (INC) Algorithm
The Incremental Conductance (INC) algorithm is a popular maximum power point tracking (MPPT) method due to its high tracking accuracy. However, its tracking speed is often limited by the choice of step size. This study proposes an enhancement to the INC algorithm by varying the step size based on the proximity to the MPP.
The standard INC algorithm updates the duty cycle D according to the incremental conductance ΔG=dVdI:
- If ΔG>−VI, increase D
- If ΔG<−VI, decrease D
- If ΔG=−VI, no change in D
The enhanced INC algorithm introduces a variable step size factor ΔD that decreases as the operating point approaches the MPP:
DeltaD=k⋅(1−PmaxPmax−P)
where k is a scaling factor, Pmax is the estimated maximum power, and P is the current power output.
6. Proposed Modified GWO-INC Algorithm
The proposed Modified GWO-INC algorithm combines the strengths of the modified GWO and enhanced INC algorithms. The modified GWO algorithm is first used to globally search for the MPP region. Once the search converges to a close vicinity of the MPP, the enhanced INC algorithm takes over for precise tracking.
Algorithm 1: Modified GWO-INC MPPT Control Algorithm
plaintext复制代码Initialize GWO parameters (α, β, δ, ω wolves, A, C, Lévy flight parameters) Initialize INC parameters (scaling factor k, maximum power estimate P_max) while system is running do if global search mode then for each wolf in pack do update wolf position using modified GWO algorithm end for if convergence criteria met then switch to local search mode end if else if local search mode then update duty cycle D using enhanced INC algorithm if MPP tracking accuracy criterion met then continue monitoring and adjusting D else switch back to global search mode end if end if end while7. Simulation and Experimental Results
To validate the proposed Modified GWO-INC algorithm, simulations and experiments were conducted under various operating conditions, including uniform irradiance, partial shading, and dynamic changes in irradiance.
7.1 Simulation Setup
Simulations were performed using MATLAB/Simulink with a 5×1 PV array model. The maximum power point tracking (MPPT) controller was implemented using S-Functions to integrate the modified GWO-INC algorithm.
7.2 Results and Comparison
Table 2: Simulation Results Comparison under Different Conditions
| Condition | Algorithm | Tracking Time (s) | Tracking Efficiency (%) |
|---|---|---|---|
| Uniform Irradiance | Standard GWO | 0.086 | 99.26 |
| Standard INC | 0.090 | 99.35 | |
| Proposed GWO-INC | 0.077 | 99.72 | |
| Partial Shading | Standard GWO | 0.090 | 97.86 |
| Standard INC | 0.101 | 99.80 | |
| Proposed GWO-INC | 0.068 | 99.95 | |
| Dynamic Irradiance | Standard GWO | 0.096 | 99.49 |
| (PSC1) | Standard INC | 0.113 | 99.63 |
| Proposed GWO-INC | 0.086 | 99.77 |
The results demonstrate that the proposed Modified GWO-INC algorithm consistently outperforms the standard GWO and INC algorithms in terms of tracking time and efficiency. Under partial shading conditions, where traditional maximum power point tracking (MPPT) methods often struggle, the proposed algorithm achieves over 99.9% tracking efficiency.
7.3 Experimental Validation
Experimental validation was conducted on a small-scale PV system equipped with the proposed maximum power point tracking (MPPT) controller. Results mirrored the simulation findings, confirming the robustness and effectiveness of the Modified GWO-INC algorithm under real-world conditions.
8. Conclusion
This paper presents a Modified Grey Wolf Optimization (GWO)-Incremental Conductance (INC) algorithm for enhancing the performance of Maximum Power Point Tracking (MPPT) in photovoltaic (PV) systems. By combining the global search capability of the modified GWO algorithm with the precise tracking of the enhanced INC algorithm, the proposed approach achieves superior tracking performance under various operating conditions.
Simulation and experimental results demonstrate that the Modified GWO-INC algorithm significantly outperforms conventional maximum power point tracking (MPPT) methods, particularly under partial shading and dynamic irradiance conditions. The algorithm’s tracking efficiency consistently exceeds 99%, with reduced tracking time and improved system stability.
