Battery Storage for Home

By /

Types of Batteries for Battery Storage for Home

Battery storage for homes has become increasingly popular as a way to store excess energy generated from renewable sources like solar panels or to provide backup power during outages. Here are some common types of batteries used for home battery storage, along with their characteristics:

  1. Lithium-ion Batteries:
    • Advantages: Widely used due to their high energy density, lightweight, and relatively longer cycle life. They have good charge and discharge efficiency and can be cycled regularly without significant capacity loss. They also require minimal maintenance.
    • Disadvantages: Higher initial cost compared to some other types of batteries. Safety concerns due to potential thermal runaway issues (although modern designs include safety features).
    • Cycle Life: Generally, several thousand cycles before significant capacity degradation.
    • Charging and Discharging Performance: Efficient charging and discharging, capable of high power output.
    • Examples: Tesla Powerwall, LG Chem RESU, BYD B-Box.
  2. Lead-Acid Batteries:
    • Advantages: Relatively low cost compared to lithium-ion batteries. They can handle deep discharges and are available in various types (flooded, gel, AGM) suitable for different applications.
    • Disadvantages: Lower energy density and shorter cycle life compared to lithium-ion batteries. They require regular maintenance and can be sensitive to temperature extremes.
    • Cycle Life: Typically a few hundred cycles before noticeable capacity loss.
    • Charging and Discharging Performance: Slower charging and discharging compared to lithium-ion batteries.
    • Examples: Concorde Sun Xtender, Trojan Solar AGM, Rolls Surrette S6 L16.
  3. Sodium-Sulfur Batteries:
    • Advantages: High energy density and efficiency. They are well-suited for large-scale energy storage and have a long cycle life.
    • Disadvantages: Operate at high temperatures (300-350°C), which requires insulation and temperature management. Limited suppliers and higher cost.
    • Cycle Life: Several thousand cycles with minimal capacity degradation.
    • Charging and Discharging Performance: High efficiency and fast response times.
    • Examples: NGK NAS Battery.
  4. Flow Batteries (Vanadium Redox Flow Batteries):
    • Advantages: Scalable, making them suitable for larger installations. They have a long cycle life and can be fully discharged without damaging the battery.
    • Disadvantages: Lower energy density compared to some other technologies. They can be bulkier and have lower efficiency.
    • Cycle Life: Several thousand cycles with minimal capacity degradation.
    • Charging and Discharging Performance: Slower response times compared to some other technologies.
    • Examples: CellCube, VRB Energy.
  5. Nickel-Iron Batteries (Edison Batteries):
    • Advantages: Long cycle life and robustness. They are resistant to overcharging and deep discharges, making them durable.
    • Disadvantages: Lower energy density and lower efficiency compared to more modern technologies. They are also relatively bulky.
    • Cycle Life: Many thousands of cycles with minimal capacity loss.
    • Charging and Discharging Performance: Relatively slow charging and discharging rates.
    • Examples: Nickel-Iron batteries are not as commonly used today, but some companies still produce modern variations.

Remember that the choice of battery type depends on various factors, including budget, energy storage requirements, available space, and intended usage. It’s also worth noting that battery technology is evolving, and new advancements may lead to improvements in terms of energy density, cycle life, and safety. Always consult with experts or manufacturers before making a decision for your specific home battery storage needs.

System Design of Battery Storage for Home

Designing a battery storage system for home involves several key components that need to be selected and configured properly. Here’s an overview of the system design principles:

  1. Battery Selection:
    • Choose a battery chemistry that suits your needs, considering factors like energy capacity, cycle life, efficiency, and cost.
    • Select a battery capacity based on your energy consumption patterns and backup requirements. It should be large enough to meet your needs but not unnecessarily oversized.
    • Consider the physical size and weight of the battery, as it needs to fit within the available space.
  2. Battery Management System (BMS):
    • The BMS is crucial for monitoring and managing the health and performance of individual battery cells or modules.
    • It ensures proper charging and discharging of the battery, prevents overcharging and overdischarging, and balances cell voltages to maximize overall battery life.
    • Choose a BMS that is compatible with your selected battery chemistry and integrates well with the overall system.
  3. Inverter:
    • An inverter converts the direct current (DC) energy stored in the battery into alternating current (AC) that can be used to power your home’s appliances.
    • Select an inverter that’s compatible with your battery type and capacity. Some batteries may have integrated inverters.
    • Consider features like efficiency, surge power capacity, and the ability to interact with the grid for grid-tied systems.
  4. Charge Controller (if applicable):
    • If you’re integrating renewable sources like solar panels, a charge controller may be needed to regulate the energy flowing into the battery.
    • The charge controller prevents overcharging the battery during periods of high solar input.
  5. Energy Management System:
    • An energy management system helps optimize when to charge and discharge the battery based on energy prices, time of use, and your specific energy consumption patterns.
    • It can also prioritize between grid charging, solar charging, and discharging based on your preferences and needs.
  6. Backup Capability:
    • If the battery system is intended for backup power during outages, ensure that it can seamlessly transition to backup mode when the grid goes down.
    • Coordinate with the inverter and BMS to enable this functionality.
  7. Monitoring and Control:
    • Choose a system with monitoring and control capabilities that allow you to track the battery’s state of charge, performance, and any potential issues remotely.
    • Some systems offer smartphone apps or web interfaces for easy monitoring.
  8. Safety Measures:
    • Incorporate safety features like fuses, circuit breakers, and proper ventilation to prevent overheating or electrical hazards.
    • Ensure the battery and components are installed according to local regulations and manufacturer guidelines.
  9. Installation and Integration:
    • Work with a qualified installer who has experience in battery storage system installations.
    • Ensure proper wiring, grounding, and integration with your existing electrical system.
  10. Future Expansion:
    • Consider the possibility of expanding your battery storage capacity in the future. Design the system in a way that allows for scalability if needed.

Remember that the design of your battery storage system should be tailored to your specific energy needs, goals, and the characteristics of your home. Consulting with professionals and manufacturers can help you make informed decisions and ensure a safe and efficient system.

Charging and Discharging Management of Battery Storage for Home

Charging and discharging management strategies are crucial for maximizing the efficiency and lifespan of battery storage systems in homes. These strategies ensure that the battery is charged and discharged in a way that aligns with user energy needs while minimizing stress on the battery cells. Here’s a deep understanding of these strategies:

Charging Strategies:

  1. Constant Voltage Charging:
    • This strategy maintains a constant voltage while gradually reducing the charging current as the battery’s state of charge (SOC) increases.
    • Commonly used in lead-acid batteries but also applicable to other chemistries.
    • Helps prevent overcharging by limiting the voltage to a safe level.
  2. Constant Current Charging:
    • In this strategy, a constant current is applied to the battery until the voltage reaches a specified level.
    • Often used in the initial stages of charging to ensure that the battery is charged uniformly.
  3. Voltage-Limited Charging:
    • Charging is controlled by limiting the charging voltage to a safe threshold.
    • Helps prevent overcharging, which can degrade battery life.
  4. State of Charge (SOC) Dependent Charging:
    • Adjusts the charging current based on the battery’s current SOC. Higher currents are used when SOC is low, and the current is gradually reduced as SOC increases.
    • Prevents high charge rates at high SOC, which can stress the battery.
  5. Temperature-Based Charging:
    • Battery charging rates are adjusted based on the battery’s temperature to prevent overheating.
    • Charging is slowed down if the battery temperature is too high.

Discharging Strategies:

  1. Depth of Discharge (DoD) Management:
    • This strategy limits how much of the battery’s capacity is used during each discharge cycle.
    • Shallower discharges can extend battery life. For example, if the battery’s total capacity is 10 kWh, discharging only 50% (5 kWh) can prolong the battery’s cycle life.
  2. Peak Shaving and Load Shifting:
    • Discharge the battery during peak demand periods or when electricity prices are high to reduce grid energy consumption and costs.
    • Energy stored during off-peak hours can be used during peak demand, reducing stress on the grid.
  3. State of Charge (SOC) Management:
    • Similar to SOC-dependent charging, this strategy adjusts the discharge rate based on the battery’s SOC.
    • Higher discharge rates are allowed when SOC is higher, and lower rates are used when SOC is lower.
  4. Emergency Backup:
    • If the battery is used as a backup power source during outages, it’s important to have a strategy that kicks in automatically when the grid goes down.
    • The battery should be set to provide power to critical loads while preserving overall battery capacity.
  5. Grid Interaction (Grid-Tied Systems):
    • In grid-tied systems, the battery can be discharged to export excess energy back to the grid when allowed by regulations or utility programs.

To maximize battery life, system efficiency, and user satisfaction, it’s essential to tailor these strategies to the specific battery chemistry, system configuration, and user energy needs. Many modern battery management systems (BMS) offer intelligent algorithms that dynamically adjust charging and discharging strategies based on real-time data, helping to balance performance, efficiency, and longevity. Regular monitoring, system updates, and adjustments are crucial to ensure that the strategies remain effective over time.

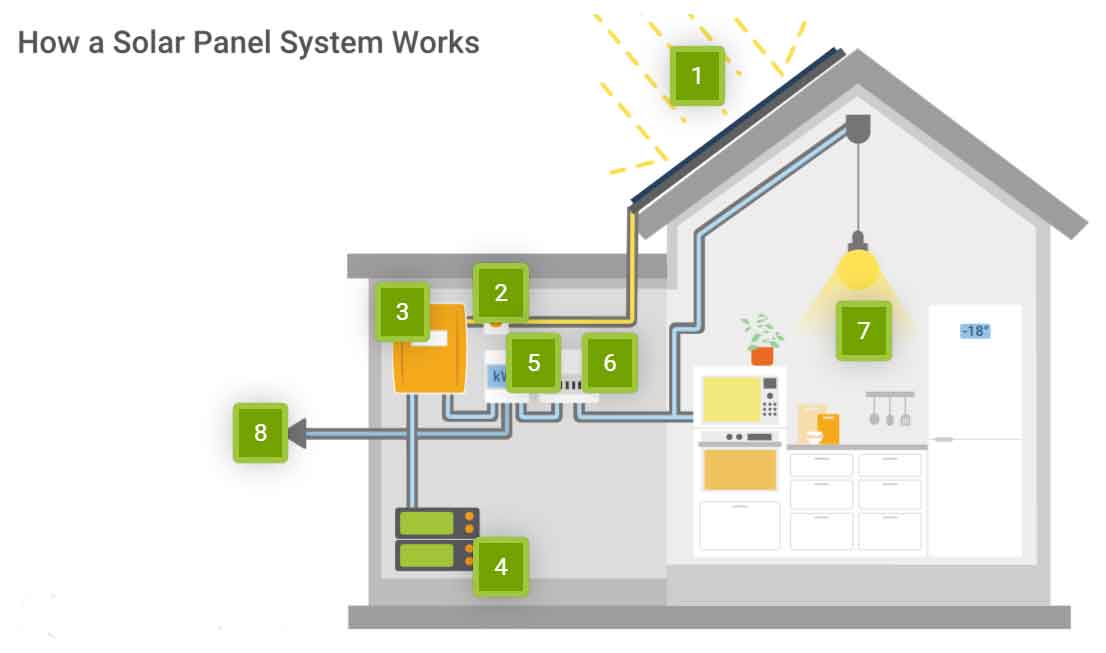

Distributed Energy Systems for Battery Storage for Home

Combining battery storage for homes with distributed energy systems, such as solar panels, can significantly optimize self-sufficient energy generation and consumption. This integrated approach allows homeowners to generate, store, and use their own renewable energy, reducing reliance on the grid and saving on energy costs. Here’s how it works:

  1. Solar Panels (Photovoltaic System):
    • Solar panels generate electricity from sunlight, converting it into direct current (DC) electricity.
    • The generated solar energy can be used to power the home’s electrical loads directly or stored in the battery for later use.
  2. Battery Storage System:
    • The battery stores excess solar energy generated during the day that isn’t immediately used by the home.
    • This stored energy can be used during periods of low sunlight (nighttime or cloudy days) to power the home’s loads.
  3. Optimizing Energy Flow:
    • An energy management system (EMS) intelligently manages the flow of energy between the solar panels, battery, and home loads.
    • When solar production exceeds immediate consumption, the excess energy is directed to charging the battery.
    • When solar production is low (e.g., at night), the battery discharges stored energy to power the home.
  4. Maximizing Self-Consumption:
    • The goal is to maximize self-consumption of the solar energy generated, meaning using as much of the solar energy within the home as possible rather than exporting it to the grid.
    • Excess energy that is sent back to the grid might not provide as much economic benefit as directly using it within the home.
  5. Peak Shaving and Load Shifting:
    • Battery storage enables peak shaving, where energy stored during periods of excess solar production is used during peak demand times, reducing reliance on grid power when electricity prices are higher.
    • Load shifting involves using stored energy during times when solar production is low or during high demand periods, further optimizing cost savings.
  6. Backup Power:
    • If configured for backup, the battery can provide power during grid outages, allowing critical loads to continue running.
    • Solar panels can still contribute to charging the battery even during an outage if there’s sufficient sunlight.
  7. Grid Interaction (Grid-Tied Systems):
    • Grid-tied systems allow homeowners to export excess energy back to the grid in some regions, potentially earning credits or compensation.
    • During periods of low solar production and low battery capacity, grid power can supplement energy needs.
  8. Monitoring and Control:
    • Modern energy management systems provide real-time monitoring and control of the solar panels, battery, and home consumption, allowing homeowners to make informed decisions about energy usage.

By combining solar panels with battery storage and an effective energy management system, homeowners can achieve higher energy independence, reduce electricity bills, and contribute to environmental sustainability by relying less on fossil fuels. However, it’s important to carefully size the solar array and battery capacity to match energy consumption patterns and consider factors like location, available sunlight, and local regulations for grid interaction. Consulting with experts can help design a system that best suits your needs.

Load Balancing of Battery Storage for Home

Load balancing in battery storage systems for homes involves storing excess energy during periods of high production or low demand and releasing that energy during periods of low production or high demand. This strategy helps achieve efficient utilization of electrical energy and can lead to cost savings and reduced reliance on the grid. Here’s how load balancing works:

Storing Excess Energy:

During periods when renewable energy sources like solar panels are generating more electricity than is immediately needed by the home, the excess energy can be stored in the battery for later use. This is typically during the daytime when solar production is at its peak.

Releasing Energy During Low Periods:

During times when energy consumption is higher than the renewable energy generation, such as nighttime or cloudy days, the battery discharges its stored energy to power the home’s loads. This helps avoid drawing energy from the grid, which can be more expensive or reliant on non-renewable sources.

Efficient Utilization of Energy:

Load balancing aims to smooth out the fluctuations between energy generation and consumption. Instead of relying solely on immediate solar generation or grid power, the battery acts as an intermediary to ensure a steady and stable energy supply to the home.

Peak Shaving:

One of the key benefits of load balancing is peak shaving. This involves using stored energy from the battery during periods of high electricity demand, which often correspond to peak utility rates. By avoiding grid power during these peak periods, homeowners can save money on their electricity bills.

Load Shifting:

Load shifting involves moving energy consumption from high-demand periods to low-demand periods. For example, using energy stored in the battery to run appliances during the evening when solar production has decreased. This reduces the strain on the grid during peak times and can result in cost savings.

Grid Independence and Backup:

A well-designed load balancing strategy can significantly reduce a home’s reliance on the grid. It can also provide backup power during grid outages, ensuring that critical loads are powered, even when the grid is down.

Energy Management System (EMS):

To achieve effective load balancing, an energy management system (EMS) is employed. The EMS monitors real-time energy production, consumption, battery state of charge, and grid conditions. It then makes decisions on when to charge, discharge, or hold energy in the battery, optimizing energy flows for efficiency and cost savings.

User Preferences and Automation:

Modern battery storage systems often allow homeowners to set preferences for how the battery should operate. This could include setting priorities for self-consumption, backup power, or grid interaction. The EMS uses these preferences, along with real-time data, to automate the load balancing process.

Load balancing is a dynamic and adaptive process that requires careful monitoring and adjustment based on changing energy patterns, weather conditions, and user behavior. By effectively managing energy flows through load balancing, homeowners can make the most of their renewable energy systems and battery storage, contributing to energy savings and sustainability.

Scale and Capacity of Battery Storage for Home batteries

Selecting the appropriate scale and capacity of a battery storage system for a home involves considering various factors to ensure that the system meets energy needs, fits within budget constraints, and utilizes available space effectively. Here’s a step-by-step approach to making reasonable decisions:

  1. Assess Energy Needs:
    • Calculate your average daily energy consumption. You can find this information on your electricity bills.
    • Identify peak energy consumption periods when you might want the battery to provide additional power.
  2. Evaluate Solar Production:
    • If you have solar panels, assess the average daily solar energy production. This will help determine how much excess energy can be stored in the battery.
    • Consider the seasonal variations in solar production.
  3. Determine Autonomy:
    • Decide how many hours of backup autonomy you need during a power outage or low solar production period. This will influence the required battery capacity.
  4. Calculate Required Capacity:
    • Calculate the daily energy storage capacity needed by multiplying your daily energy consumption by the desired backup autonomy factor.
    • For example, if you consume 20 kWh/day and want two days of backup autonomy, you’d need a battery with at least 40 kWh capacity.
  5. Consider Depth of Discharge (DoD):
    • To prolong battery life, avoid discharging the battery fully. Many experts recommend keeping the depth of discharge (DoD) below 80%.
    • Adjust the required capacity to account for this DoD limit.
  6. Budget and Costs:
    • Research the costs of different battery technologies. Lithium-ion batteries generally have higher upfront costs but longer lifespans and higher energy densities compared to lead-acid batteries.
    • Consider the total cost of ownership over the battery’s lifetime, factoring in replacement costs and potential savings from reduced electricity bills.
  7. Available Space:
    • Different battery chemistries have varying physical sizes and weight. Consider the available space in your home for installation.
    • Ensure proper ventilation and safety measures.
  8. Future Expansion:
    • If you foresee increasing your solar capacity or energy consumption in the future, consider a slightly larger battery system than your current needs.
  9. Grid Connection and Incentives:
    • If you’re allowed to sell excess energy back to the grid, you might not need as large a battery system.
    • Research any local incentives, subsidies, or tax credits that might make a larger battery system more financially viable.
  10. Consult Experts:
    • Reach out to professionals or solar installers who can perform energy assessments and provide recommendations based on your specific situation.
  11. Energy Management System (EMS):
    • An EMS can optimize the use of your battery storage system by managing when to charge and discharge based on energy prices, time of use, and consumption patterns.
  12. Monitor and Adjust:
    • Regularly monitor your energy consumption, solar production, and battery performance. Adjust your system settings if needed to optimize energy utilization.

By carefully considering these factors, you can determine the appropriate scale and capacity of the battery storage system for your home. Keep in mind that technology is constantly evolving, so staying informed about the latest advancements can also guide your decision-making process.

Maintenance and Monitoring of Battery Storage for Home

Maintenance and monitoring are crucial aspects of ensuring the optimal performance and longevity of battery storage systems for homes. Regular inspections, proper cycling of charging and discharging, and real-time monitoring can help identify issues early and maximize the system’s efficiency. Here’s how to effectively manage maintenance and monitoring:

Daily Maintenance:

  1. Visual Inspection:
    • Regularly check the physical condition of the battery and its components. Look for signs of corrosion, leaks, or damage.
    • Ensure proper ventilation to prevent overheating.
  2. Temperature Management:
    • Monitor the operating temperature of the battery. High temperatures can accelerate battery degradation.
    • Ensure that the battery is installed in an area with adequate airflow and cooling.
  3. Safety Precautions:
    • Follow manufacturer guidelines for safe handling and maintenance.
    • If your system includes lead-acid batteries, ensure battery terminals are clean and free from corrosion.

Cycling Charging and Discharging:

  1. Avoid Deep Discharges:
    • Deep discharges can reduce the battery’s lifespan. Set up the system to avoid fully discharging the battery whenever possible.
  2. Regular Usage:
    • Batteries perform best when used regularly. Aim for regular charging and discharging cycles, even if they are partial cycles.
  3. Charge Control:
    • Ensure that the charging process is controlled to prevent overcharging, which can damage the battery.

Real-time Monitoring Systems:

  1. Battery Management System (BMS):
    • Many modern battery systems come with integrated BMS that monitor and manage battery health and performance.
    • The BMS prevents overcharging, overdischarging, and balances cell voltages to extend battery life.
  2. Energy Management System (EMS):
    • An EMS can optimize energy flows and monitor the overall performance of your battery storage system, solar panels, and home energy consumption.
  3. Remote Monitoring:
    • Many systems offer remote monitoring capabilities, allowing you to track your system’s performance and health status through smartphone apps or web interfaces.
    • Monitor the state of charge (SoC), charging/discharging rates, and any abnormal behavior.
  4. Alerts and Notifications:
    • Set up alerts to receive notifications in case of any issues or anomalies detected by the monitoring system.
  5. Performance Tracking:
    • Regularly review historical data to track how well the system is meeting your energy needs and identify any changes in performance over time.
  6. Professional Maintenance:
    • Consider scheduling periodic professional maintenance, especially for more complex systems or if issues are detected.
    • Professionals can conduct thorough inspections, testing, and maintenance to ensure optimal system health.

Remember that proper maintenance and monitoring practices can vary based on the type of battery technology you have. Always refer to the manufacturer’s guidelines and consult professionals if you have any concerns or uncertainties about maintaining and monitoring your battery storage system for home use.

Scroll to Top
